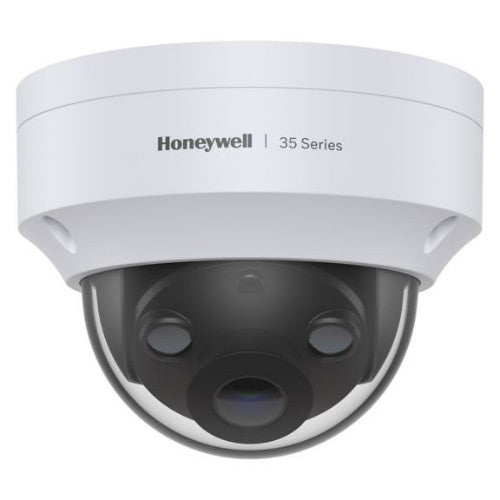

35 Series IP Camera

Description

The 35 Series AI IP cameras offer exceptional picture clarity even in low light conditions and have a higher resolution IR camera to cover larger areas both day and night. These cameras include smart motion detection based on humans and vehicles to reduce false alarms and support audio and alarm interface for local alarm integration. They feature flexible system integration, easy installation, and secure data transmission to reduce regulatory compliance, installation and operating costs and increase productivity and efficiency.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Dynamic range	120 dB
Design
Country of origin	Vietnam
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Ceiling
International Protection (IP) code	IP66, IP67
Housing material	Aluminum
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 75°
Pan range	0 - 330°
White balance	Auto, Daylight, Fluorescent, Manual, Shade, Tungsten
Angle of rotation	337°
Camera shutter type	Electronic
Camera shutter speed	1/8 ~ 1/32000 s
Lens viewing angle, horizontal	93°
Lens viewing angle, vertical	68°
Image sensor
Sensor type	CMOS
Optical sensor size	1/2.8"
Lens system
Minimum aperture number	2
Fixed focal length	0.11" (2.8 mm)
Night vision
Night vision	Yes
Night vision distance	40 m
LED type	IR
Number of illumination LEDs	2
Video
Privacy masking	Yes
Highlight Compensation (HLC)	Yes
Bit rate	100K ~ 12 Mbps
Back Light Compensation (BLC)	Yes
Maximum resolution	2592 x 1944 pixels
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2592 x 1520, 2592 x 1944
Frame rate	30 fps
Video streaming	Yes
Total megapixels	5 MP
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Signal-to-Noise Ratio (SNR)	50 dB
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Number of users	10 user(s)
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Storage
Maximum memory card size	256 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Hard drive
Built-in HDD	No
Technical details
Type	IP security camera
Form factor	Dome
Placement supported	Indoor & outdoor
Product colour	White
Mounting type	Ceiling
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Compliance certificates	CE, RoHS
Security
Alarm input channels	1
Alarm output channels	1
Material
Housing material	Aluminum
Software
Windows operating systems supported	Windows 10
Management features
Web browser	Yes
Power
Power source type	DC, PoE
Power consumption (max)	4.08 W
DC output voltage	12
Certificates
International Protection (IP) code	IP66, IP67
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
System requirements
Windows operating systems supported	Windows 10
Weight & dimensions
Height	3.37" (85.6 mm)
Diameter	4.33" (11 cm)
Weight	19.8 oz (560 g)
Package weight	22.9 oz (650 g)
Packaging data
Package weight	22.9 oz (650 g)
Sustainability
Compliance certificates	CE, RoHS
Packaging content
Number of cameras	1
