5S UPS, Line-interactive, 550 VA, 330 W, Input C14, Outputs C13, Tower, with BS input cord

Description

The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.

Specifications

Power
Output power factor	0.6
Output power	330 W
Input operation voltage (min)	175 V
Input operation voltage (max)	275 V
Output operation voltage (min)	184 V
Output operation voltage (max)	276 V
Efficiency	97%
Power factor	0.6
Output power capacity	0.55 kVA
Performance
UPS topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Surge protection	Yes
Surge protection features	Network
Power protection features	Overdischarge
Noise level	25 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power factor	0.6
Output power	330 W
Input operation voltage (min)	175 V
Input operation voltage (max)	275 V
Output operation voltage (min)	184 V
Output operation voltage (max)	276 V
Efficiency	97%
Surge protection	Yes
Surge protection features	Network
Power protection features	Overdischarge
Power factor	0.6
Noise level	25 dB
Output power capacity	0.55 kVA
Input frequency	46/70 Hz

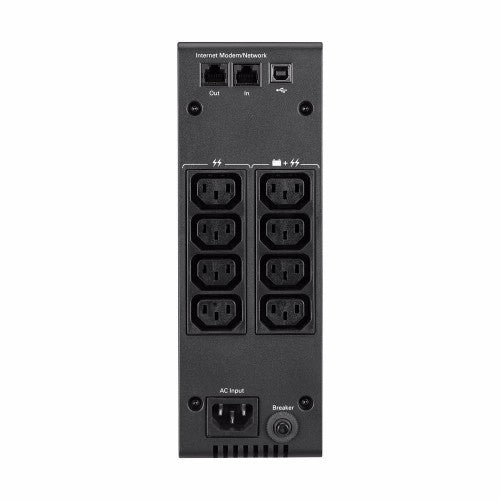

Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB port type	USB Type-B

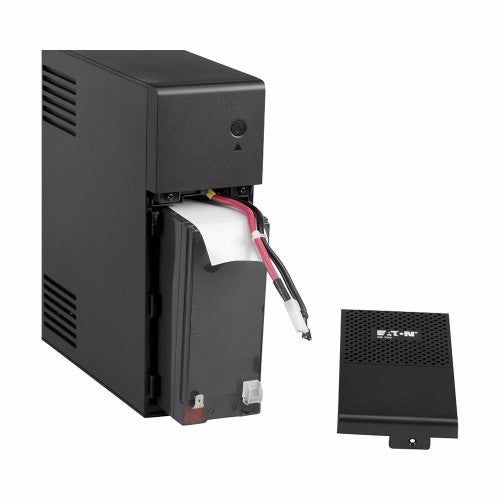

Battery
Battery voltage	12 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	2 min
Cold start	Yes
Automatic battery test	Yes
Design

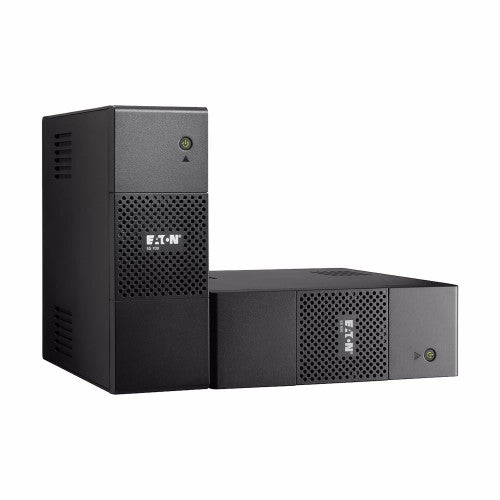

Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	IEC/EN 62040-1 IEC/EN 62040-2 EAC
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 85%
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Compliance certificates	CE
Weight & dimensions
Weight	7.1 kg
Width	260 mm
Height	250 mm
Depth	87 mm
Packaging data
Cables included	Input power cable, USB cable
Manual	Yes
Certificates
Certification	IEC/EN 62040-1 IEC/EN 62040-2 EAC
Packaging content
Cables included	Input power cable, USB cable
Manual	Yes
