D-Link DGS-1210-52MP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE)

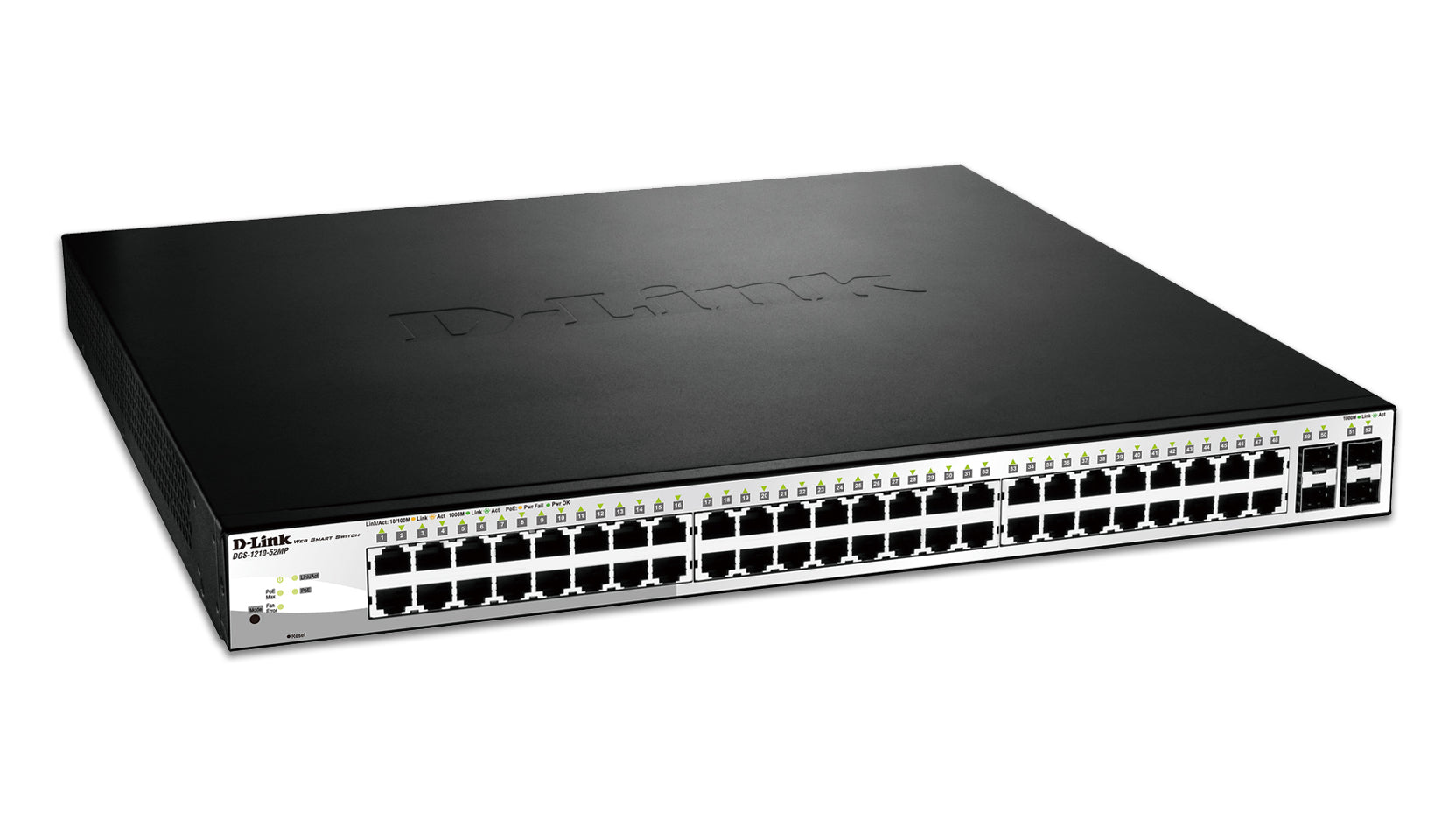

D-Link DGS-1210-52MP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Vendor: D-Link
SKU: DGS-1210-52MP/E
Need bulk pricing or a custom order?
D-Link DGS-1210-52MP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE)
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| Jumbo frames | 10000 |
| Number of static routes | 256 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 77.4 Mpps |
| Performance | |
| Packet buffer memory | 12 MB |
| Mean time between failures (MTBF) | 236406 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Technical details | |
| Product colour | Black, Grey |
| Mean time between failures (MTBF) | 236406 h |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CB, CCC, cUL |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 54.4 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 507.23 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 6.26 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
