Nuclias Connect AX3000
Outdoor Access Point
The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect
Outdoor Access Point
The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect

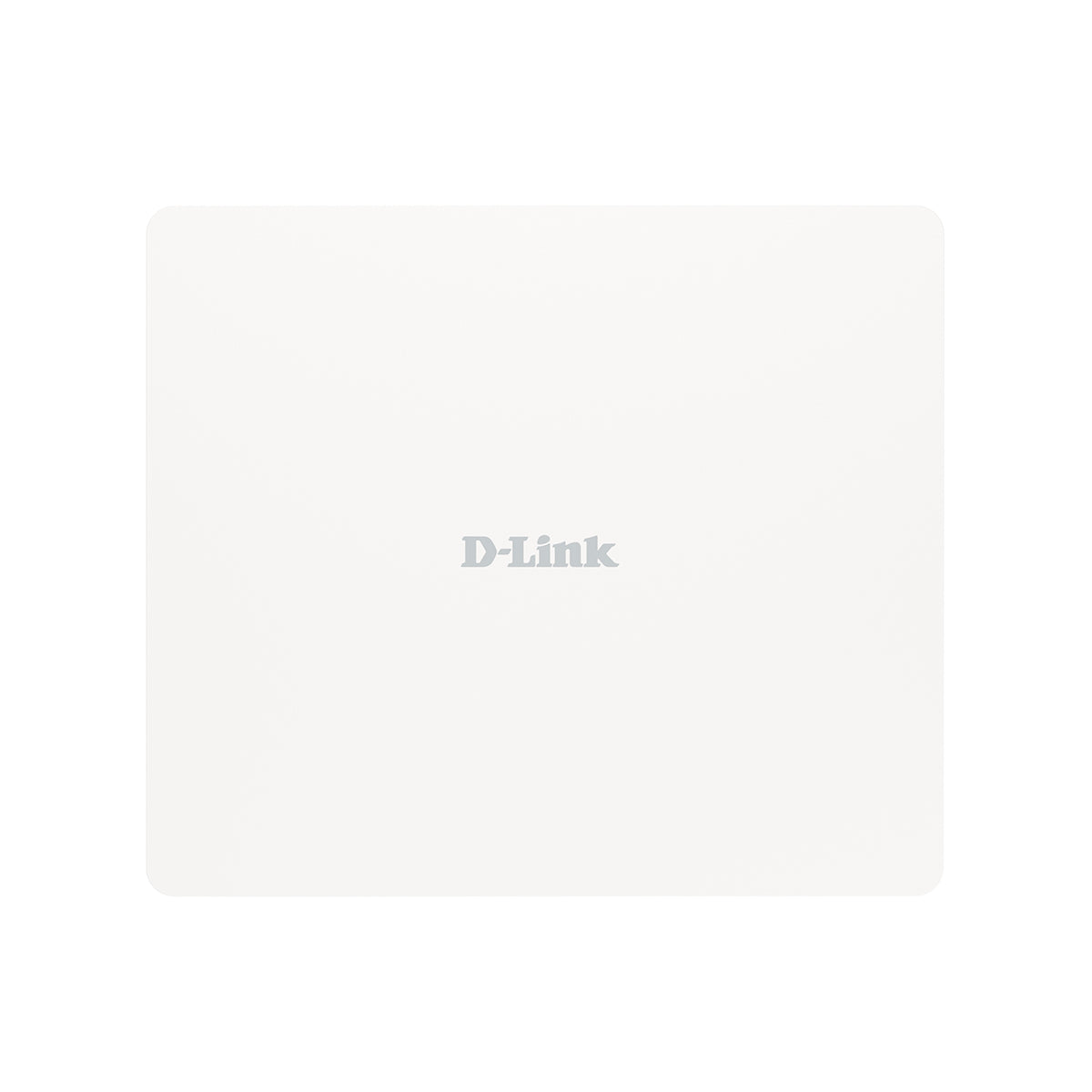

D-Link AX3000 Wi-Fi 6 Dual-Band PoE Outdoor Access Point
Vendor: D-Link
SKU: DAP-X3060OU
Need bulk pricing or a custom order?
Nuclias Connect AX3000
Outdoor Access Point
The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect
Outdoor Access Point
The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect
Product Details
Specifications
Detailed technical specifications and product information.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 16.7 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 7.9 dBi |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 277 mm |
| Depth | 50 mm |
| Weight | 1.16 kg |
| Height | 240 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
