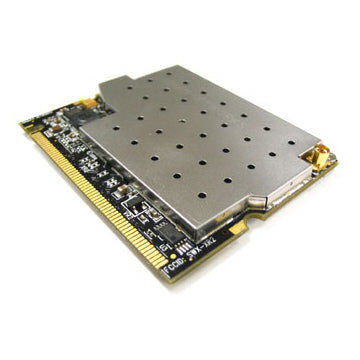

2.4GHz, 600mw, 802.11b/g, AR5414, 32-bit mini-PCI Type IIIA, 3.3VDC, 54Mbps

Description

The XtremeRange series of radio modules by Ubiquiti leverages our strong knowledge and experience gained from customer interactions, field performance evaluations, and lab research; and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards. The XtremeRange2 is a carrier-class 802.1 1b/g based 2.4GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the high levels of performance and reliability

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN
Host interface	Mini PCI Express
Connectivity technology	Wireless
Bandwidth
Bandwidth	2.4 GHz
Maximum data transfer rate	54 Mbit/s
Network
Chipset	AR5414
Bandwidth	2.4 GHz
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g
Maximum data transfer rate	54 Mbit/s
Antenna
Antenna	Yes
Antenna connector type	MMCX
Technical details
Channel bandwidth	40 MHz
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Design
Chipset	AR5414
Antenna	Yes
Internal	Yes
Antenna connector type	MMCX
Power
Output voltage	3.3 V
Operational conditions
Operating temperature (T-T)	-45 - 90 °C
Security
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2
Packaging data
Quantity per pack	1 pc(s)
Performance
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2
Channel bandwidth	40 MHz
Other features
Chipset	AR5414
Channel bandwidth	40 MHz
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	85176990
