4+ km, multi-gigabit, 60 GHz bridge with SFP+ support
Key Features
- Low-interference, 60 GHz spectrum
- High-gain dish antenna
- 5 GHz backup radio
- 4+ km link range
- Supports channel bonding to achieve up to a 6 Gbps throughput rate
- Terragraph-certified
- 10G SFP+ port
- Integrated GPS
- Simple, Bluetooth-powered setup with the UISP® Mobile app
Description
The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 6000 Mbit/s |
| Maximum transfer distance | 4000 m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | WPA2-PSK |
| Management features | |
| Web-based management | Yes |
| LED indicators | LAN, Power |
| Features | |
| Product type | Network bridge |
| Material | Polycarbonate (PC), Steel |
| Product colour | White |
| Reset button | Yes |
| RAM type | DDR4 |
| Processor frequency | 1600 MHz |
| Network Time Protocol (NTP) client | Yes |
| Power LED | Yes |
| LED indicators | LAN, Power |
| Internal memory | 2048 MB |
| Mounting type | Pole |
| Power | |
| Power consumption (max) | 31.2 W |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 131 °F |
| Certificates | |
| Certification | FCC, IC, CE, terragraph |
| Technical details | |
| Material | Polycarbonate (PC), Steel |
| Product colour | White |
| Operating temperature (T-T) | -40 - 131 °F |
| Internal memory | 2048 MB |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 8.6 kg |
| Width | 383 mm |
| Depth | 664 mm |
| Height | 779 mm |
| Processor | |
| Processor frequency | 1600 MHz |
| Memory | |
| RAM type | DDR4 |
| Indication | |
| Power LED | Yes |
| Packaging content | |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |

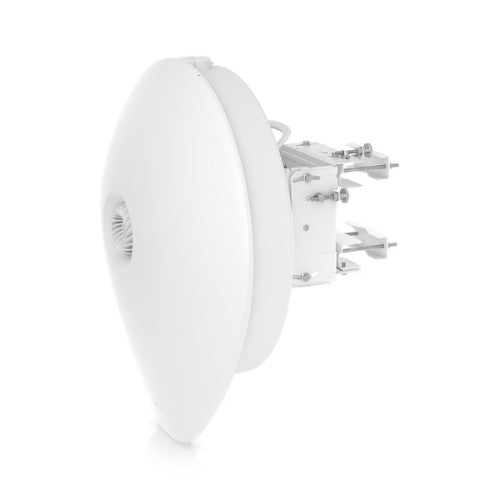

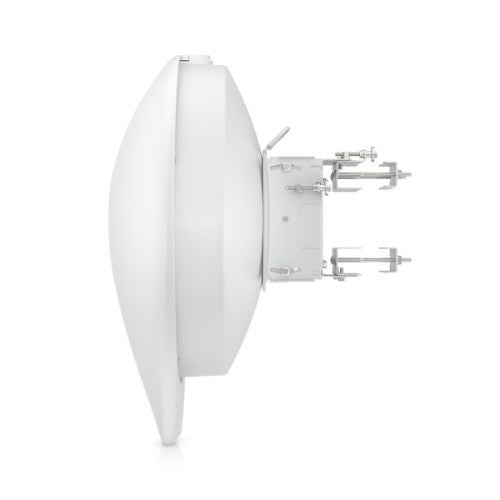

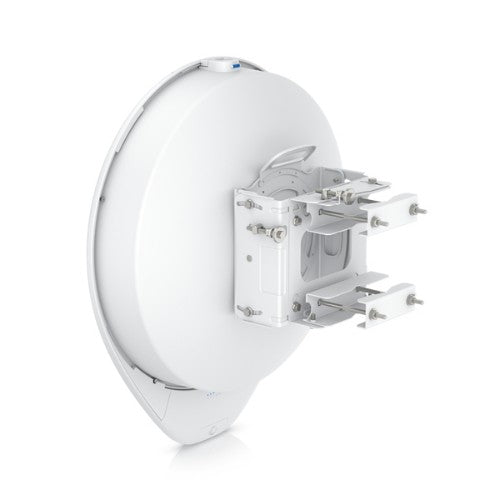

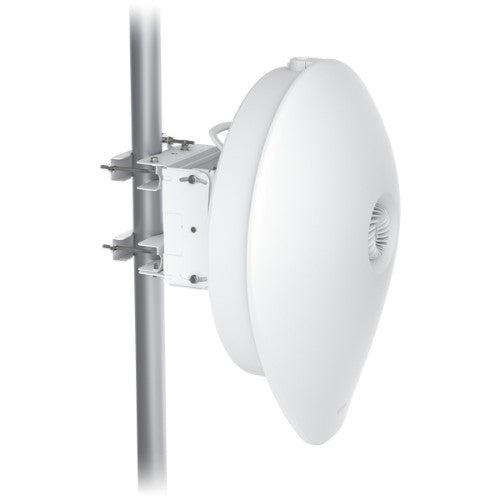

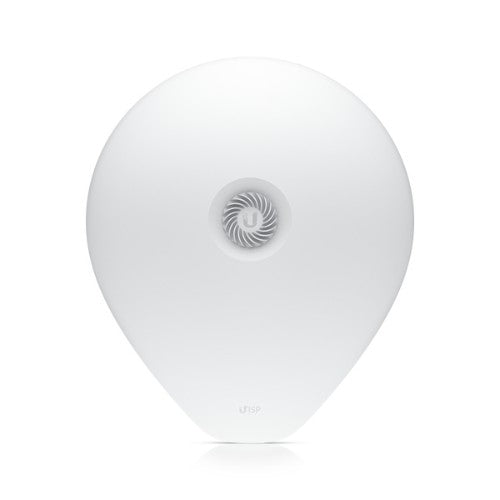

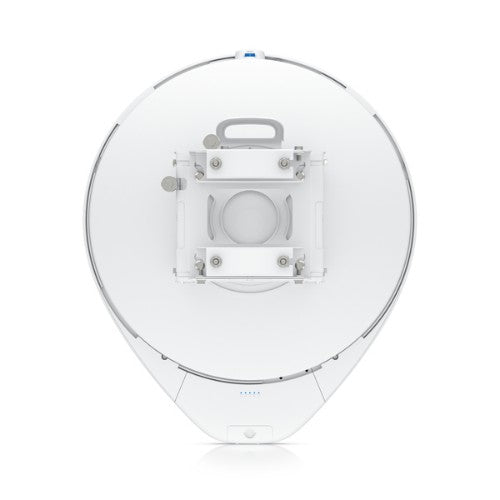

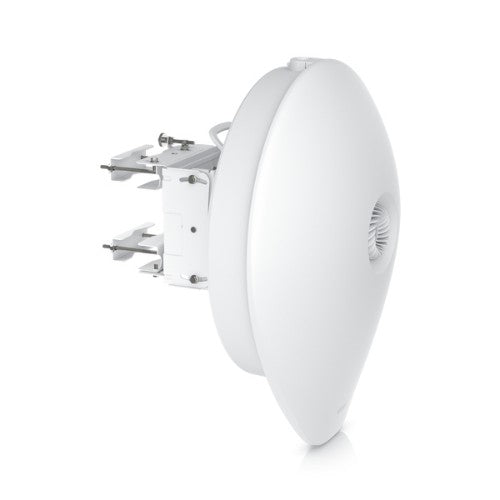

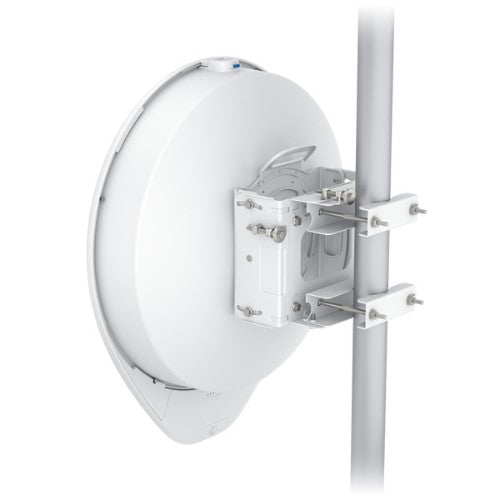

Ubiquiti UISP airFiber 60 XG Network bridge 6000 Mbit/s White
Vendor: Ubiquiti
SKU: AF60-XG
Regular price
Dhs. 4,139.67
