GPON, Wi-Fi 6, 4x RJ-45, SC/APC, PoE, 2.488 Gbps downstream, 1.244 Gbps upstream, UK
Key Features
- (1) GPON port
- Integrated 4-port GbE switch
- Integrated WiFi 6
Description
GPON customer-premises equipment (CPE) with WiFi6 support.Specifications
| Design | |
|---|---|
| Product type | Optical network unit (ONU) |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| LED indicators | LAN, Power |
| Certification | FCC, IC, CE |
| Network | |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| ITU standards | G.984 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Switch layer | L2/L3 |
| Upstream data rate | 2488 Mbit/s |
| Downstream data rate | 1244 Mbit/s |
| Transmission distance (max) | 20 km |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1490 nm |
| VLAN support | Yes |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | Internal |
| Antenna gain level (max) | 3 dBi |
| Management features | |
| Reset button | Yes |
| Security | |
| Security algorithms | AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC/APC |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| Power | |
| Output voltage | 5 V |
| Output current | 3 A |
| Power consumption (max) | 11 W |
| Certificates | |
| Compliance certificates | CE |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 141.5 mm |
| Depth | 140.8 mm |
| Height | 31.6 mm |
| Weight | 415 g |
| Packaging content | |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | CE |
| Logistics data | |
| Quantity per pack | 1 pc(s) |

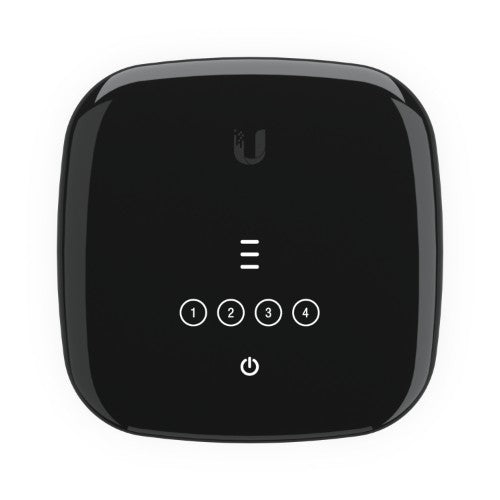

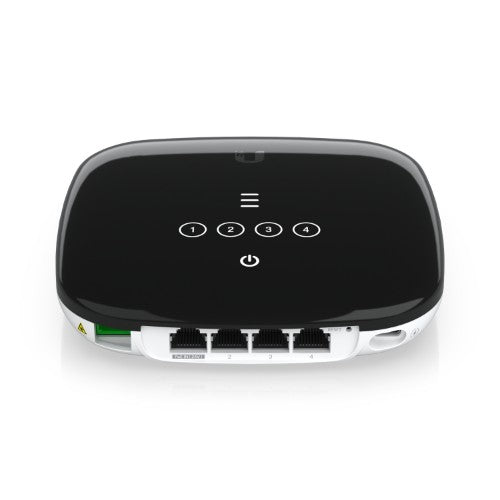

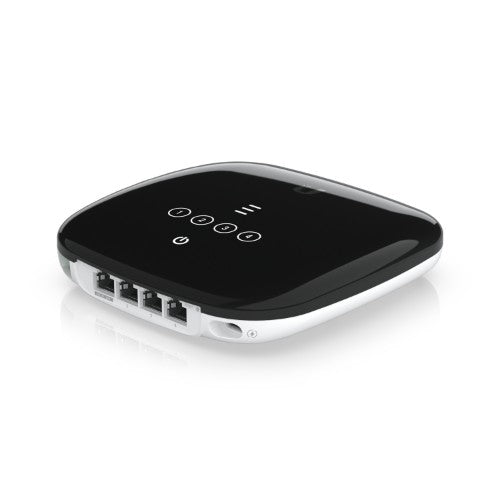

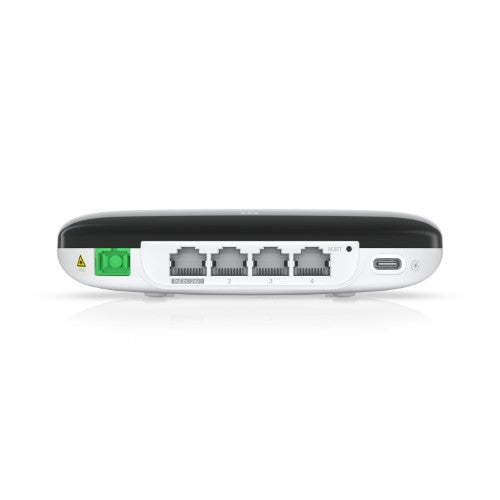

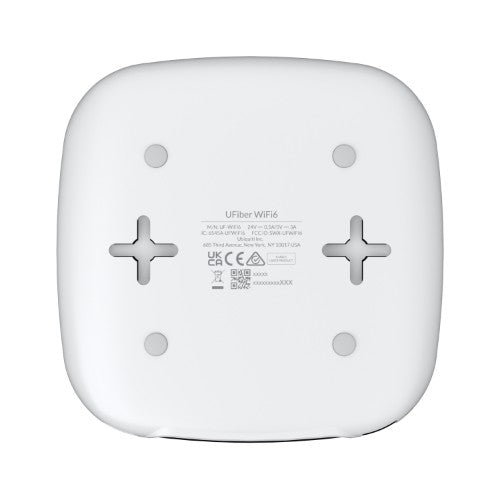

Ubiquiti UFiber WiFi 6 Optical network unit (ONU)
Vendor: Ubiquiti
SKU: UF-WIFI6-UK
Regular price
Dhs. 412.77
Need bulk pricing or a custom order?
