500+ Mbps, 5GHz (5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850GHz), 10/100/1000, PoE, airOS 8

Description

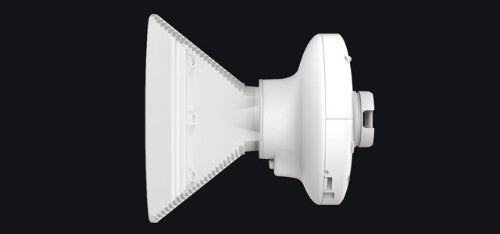

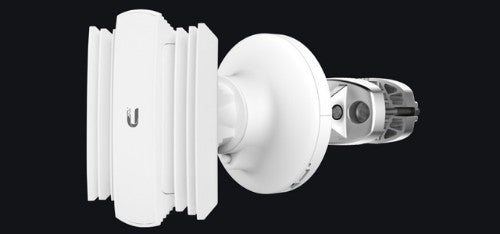

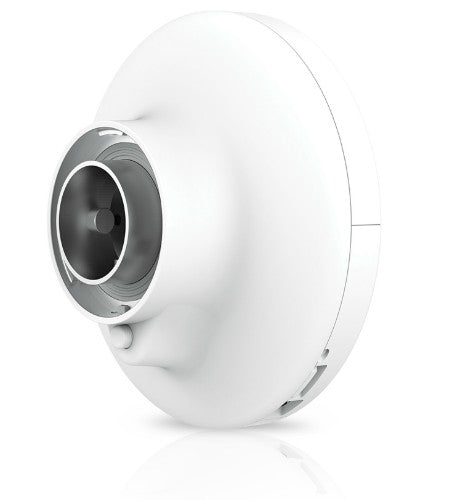

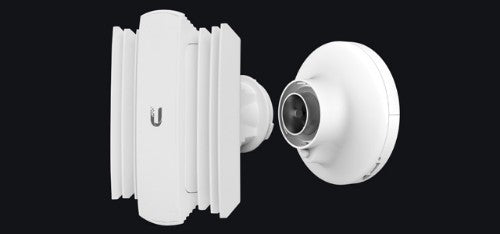

Shielded airMAX® ac BaseStation with airPrism® Technology With a die-cast aluminum base and interchangeable antenna, the PrismStationTM AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti's advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles). Built to Fight Noise With Prism Active RF Filter The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronization) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy. Modular Design The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTM AC also gets maximum gain out of the smallest footprint. Beam Performance Perfected The PrismStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology. GPS Synchronization PrismStationTM AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions. Enhanced Co-Location Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements. Improved Noise Immunity PrismStationTM AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Management Wi-Fi Radio The PrismStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Advanced Software Sporting an all-new design for improved usability, airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX® ac products.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	500 Mbit/s
Performance
2.4 GHz	No
5 GHz	Yes
Transmitting power	28 dBmW
Frequency band	5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Ethernet LAN data rates	10,100,1000 Mbit/s
Certification	FCC, IC, CE
Maximum data transfer rate	500 Mbit/s
Operating system installed	AirOS
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Wireless LAN features
Frequency band	5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Certificates
Certification	FCC, IC, CE
Memory
Internal memory	128 MB
Flash memory	16 MB
Features
2.4 GHz	No
5 GHz	Yes
Transmitting power	28 dBmW
Frequency band	5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	500 Mbit/s
Operating system installed	AirOS
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	10 W
Output voltage	24 V
Output current	1 A
Power over Ethernet (PoE)	Yes
Design
Placement	Pole
Product colour	White
Certification	FCC, IC, CE
Antenna
Antenna type	Internal
Technical details
Transmitting power	28 dBmW
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
Processor
Built-in processor	Yes
Weight & dimensions
Width	155 mm
Depth	104 mm
Weight	770 g
Height	155 mm
Packaging data
Mounting kit	Yes
PoE adapter included	Yes
Packaging content
Mounting kit	Yes
PoE adapter included	Yes
