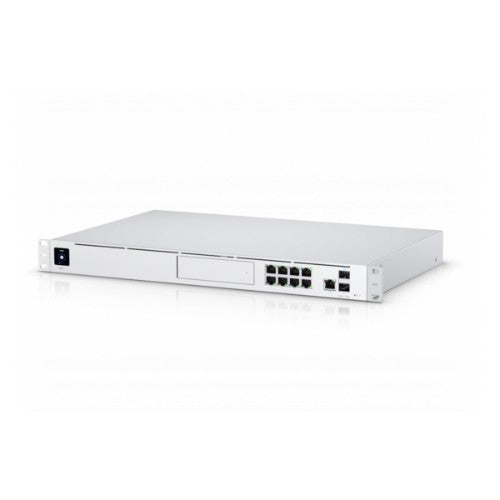

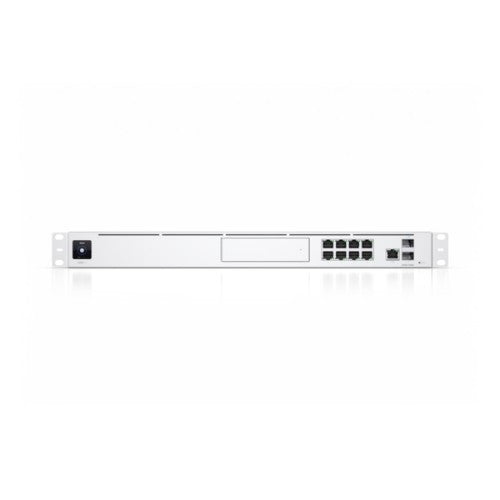

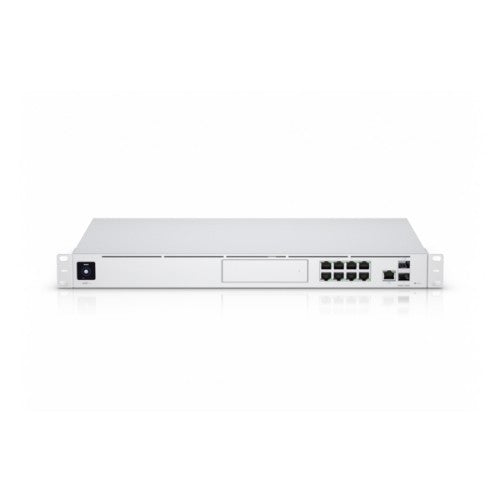

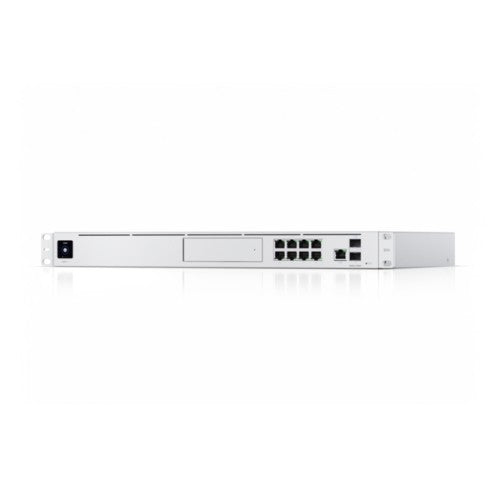

8 x LAN GbE, 1 x WAN GbE, 1 x LAN SFP+, 1 x WAN SFP+, ARM Cortex-A57 1.7 GHz, 4 GB DDR4, 442.4 x 43.7 x 285.6 mm, 3.9 kg, UK

Key Features

• Includes full UniFi application suite for device management
• 3.5+ Gbps routing
• (1) 10G SFP+, (8) GbE RJ45 LAN ports
• (1) 10G SFP+, (1) GbE RJ45 WAN ports
• 1.3" touchscreen
• 3.5" HDD bay

Description

Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated switch.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Memory
Flash memory	16000 MB
Internal memory	4096 MB
Performance
Processor cores	4
Storage media	eMMC
Internal memory type	DDR4
Flash memory	16000 MB
Internal memory	4096 MB
Built-in processor	Yes
Processor frequency	1700 MHz
Processor model	ARM Cortex-A57
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Throughput	3.5 Gbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Management features
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
DC-in jack	Yes
SFP+ module slots quantity	1
WAN/Ethernet LAN ports quantity	1
Protocols
DHCP server	Yes
Technical details
Built-in processor	Yes
Processor frequency	1700 MHz
LED indicators	Yes
Product colour	White
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, Federal Communications Commission (FCC)
Storage
Number of HDDs supported	1
HDD size	3.5"
Certificates
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Packaging content
Cables included	AC
Features
Processor cores	4
Storage media	eMMC
Internal memory type	DDR4
Flash memory	16000 MB
Internal memory	4096 MB
Built-in processor	Yes
Processor frequency	1700 MHz
Processor model	ARM Cortex-A57
Design
Housing material	Aluminium, Steel
LED indicators	Yes
Product colour	White
Built-in display	Yes
Display type	LCM
Touchscreen	Yes
Display diagonal	3.3 cm (1.3")
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply	50 W
Power consumption (max)	33 W
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	442.4 mm
Depth	285.6 mm
Height	43.7 mm
Weight	3.9 kg
Packaging data
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
