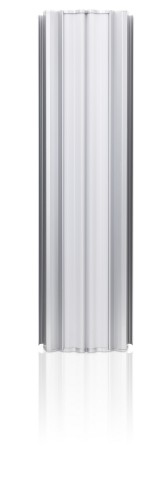

5 GHz, 22 dBi, 45°

Description

The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Design and Performance

The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance

Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction

airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

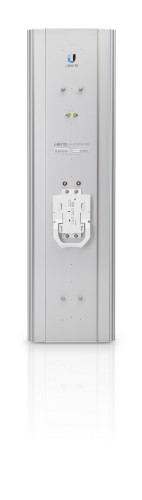

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.

Specifications

Performance
Antenna gain level (max)	22 dBi
Frequency band	5.1 - 5.8 GHz
Vertical beam width	45°
Horizontal beam width	45°
Features
Voltage Standing Wave Ratio (VSWR)	1.5:1
Polarization	Dual polarization
Mounting	Wall
Product colour	White
Antenna gain level (max)	22 dBi
Frequency band	5.1 - 5.8 GHz
Vertical beam width	45°
Horizontal beam width	45°
Weight & dimensions
Weight	6 kg
Width	215 mm
Depth	94 mm
Height	750 mm
Technical details
Antenna gain level (max)	22 dBi
Frequency band	5.1 - 5.8 GHz
Voltage Standing Wave Ratio (VSWR)	1.5:1
Vertical beam width	45°
Polarization	Dual polarization
Mounting	Wall
Horizontal beam width	45°
Harmonized System (HS) code	85177100
Colour
Product colour	White
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
