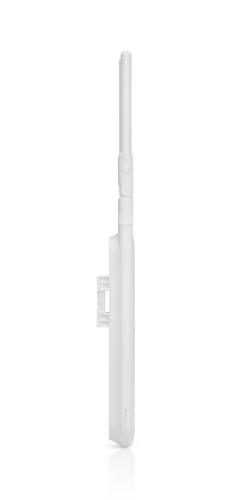

5x Unifi AC Mesh
802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

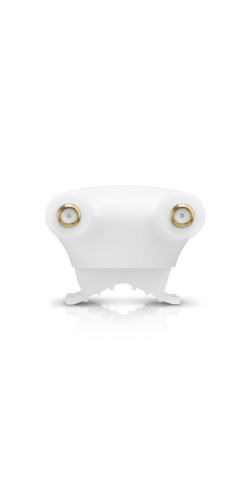

Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.
Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.
Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)
Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the optional Gigabit PoE adapter.
Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.
Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world all controlled by a single interface accessed via the Internet or local network.
Specifications
Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af
Description
5 PACK - PLEASE NOTE MULTIPACK PRODUCTS DO NOT INCLUDE POE INJECTORS802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology
Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.
Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.
Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)
Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the optional Gigabit PoE adapter.
Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.
Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world all controlled by a single interface accessed via the Internet or local network.
Specifications
Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Number of users | 250 user(s) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Certification | CE, FCC, IC |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO | Yes |
| Network | |
| Internal | No |
| Number of users | 250 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Number of users | 250 user(s) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO | Yes |
| Security | |
| Security algorithms | WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 8.5 W |
| Power supply | 24 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | White |
| Internal | No |
| Certification | CE, FCC, IC |
| Antenna | |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Antenna features | Detachable antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, IC |
| Weight & dimensions | |
| Width | 46 mm |
| Depth | 34.4 mm |
| Weight | 152 g |
| Height | 353 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Ubiquiti 5x Unifi AC Mesh 867 Mbit/s White Power over Ethernet (PoE)
Vendor: Ubiquiti
SKU: UAP-AC-M-5
Regular price
Dhs. 1,937.36
