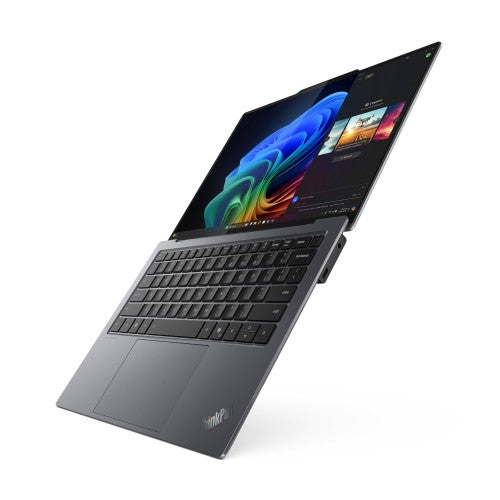

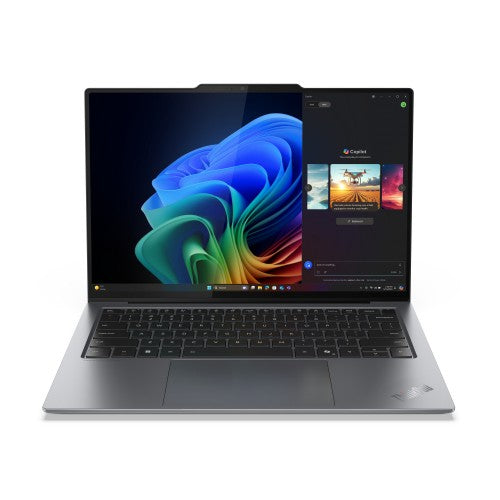

Lenovo ThinkPad X9-14 Gen 1 Aura Edition Copilot+ PC, Intel Core Ultra 5, 35.6 cm (14"), 1920 x 1200 pixels, 16 GB, 512 GB, Windows 11 Pro

Description

Lenovo ThinkPad X9-14 Gen 1 Aura Edition Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 226V. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.21 kg

Specifications

Design
Colour name	Grey
Product type	Laptop
Housing material	Aluminium
Form factor	Clamshell
Product colour	Grey
Display
HD type	WUXGA
Panel type	OLED
LED backlight	Yes
Display brightness	400 cd/m²
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	8 MB
Processor model	226V
Processor boost frequency	4.5 GHz
Processor cores	8
Processor threads	8
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor base power	17 W
Maximum turbo power	37 W
Performance-core base frequency	2.1 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Performance cores	4
Low Power Efficient-core Base Frequency	2100 MHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Copilot+ PC	Yes
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics 130V
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	Touchpad
Keyboard layout	AZERTY
Numeric keypad	No
Keyboard backlit	Yes
Keyboard language	French
Copilot key	Yes
Software
Operating system language	French, English
Operating system architecture	64-bit
Bundled software	Intel Connectivity Performance Suite
Operating system installed	Windows 11 Pro
Microsoft Copilot	Yes
Copilot+ PC	Yes
Technical details
Housing material	Aluminium
Form factor	Clamshell
Product colour	Grey
Battery
Battery capacity	55 Wh
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Width	311.8 mm
Depth	212.3 mm
Height	17.2 mm
Weight	1.21 kg
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
Anti-glare screen	Yes
