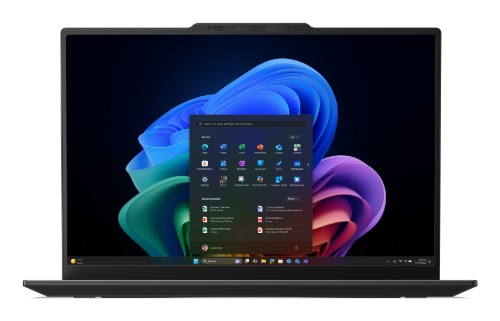

Lenovo ThinkPad X1 Carbon Gen 14 Aura Edition Copilot+ PC, Intel Core Ultra 5, 35.6 cm (14"), 1920 x 1200 pixels, 32 GB, 512 GB, Windows 11 Pro

Description

Lenovo ThinkPad X1 Carbon Gen 14 Aura Edition Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 325. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black

Specifications

Design
Product type	Laptop
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black
Stylus pen support	No
Display back cover material	Carbon
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	500 cd/m²
Touchscreen	Yes
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	325
Processor boost frequency	4.5 GHz
Processor cores	8
Processor threads	8
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor base power	25 W
Maximum turbo power	55 W
Efficient-core base frequency	1.6 GHz
Performance-core base frequency	2.1 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Performance cores	4
Efficient cores	0
Low Power Efficient-core Base Frequency	1600 MHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	47 TOPs
GPU performance up to	40 TOPs
Copilot+ PC	Yes
Memory
Memory form factor	On-board
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Maximum internal memory	32 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
Self-Encrypting Drive (SED)	Yes
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio chip	Cirrus Logic CS42L45
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE211
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Upgradable
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	3
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Built-in touchpad	Yes
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Keyboard language	German
Copilot key	Yes
Pressure sensing trackpad	Yes
Software
Operating system language	German
Bundled software	Intel Connectivity Performance Suite + Lenovo AI Now
Operating system installed	Windows 11 Pro
Microsoft Copilot	Yes
Copilot+ PC	Yes
Technical details
Built-in touchpad	Yes
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black
Processor special features
Intel® Smart Cache	Yes
Battery
Battery capacity	58 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	65 W
Security
Cable lock slot type	Kensington, Nano
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,TCO10,EPEAT Gold,RoHS,ErP
Weight & dimensions
Width	312.5 mm
Depth	215.8 mm
Height (front)	7.7 mm
Height (rear)	1.43 cm
Weight	998 g
Packaging data
Stylus pen	No
AC adapter included	Yes
Packaging content
Stylus pen	No
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 7 BE211
On-board graphics card	Yes
Audio system	Dolby Atmos
AC adapter included	Yes
Anti-glare screen	Yes
