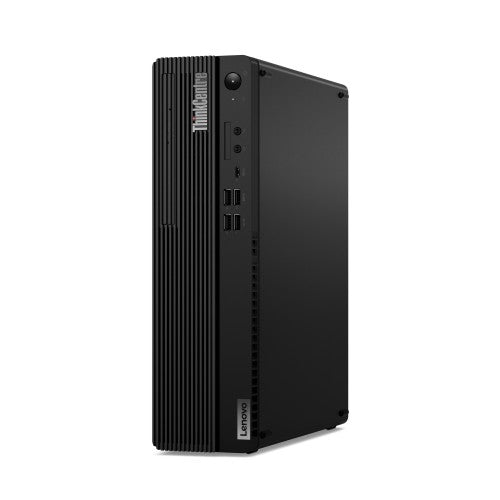

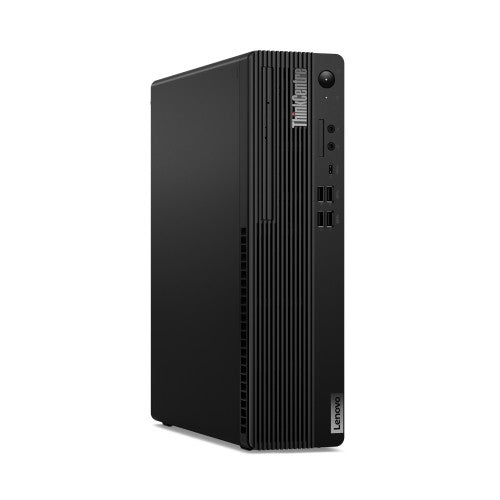

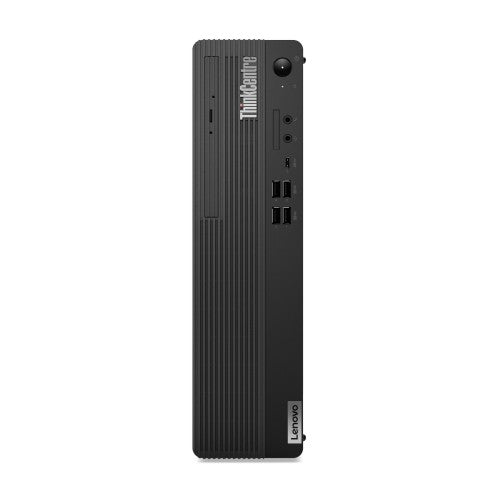

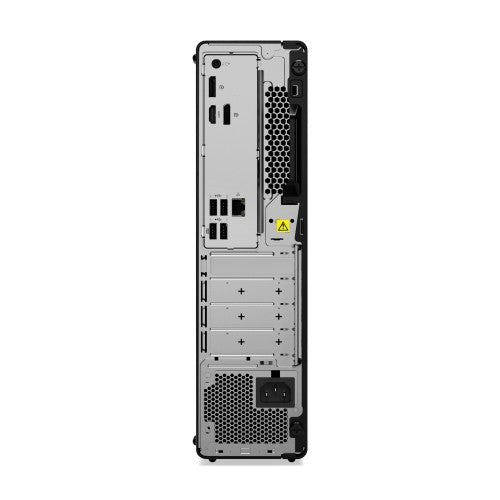

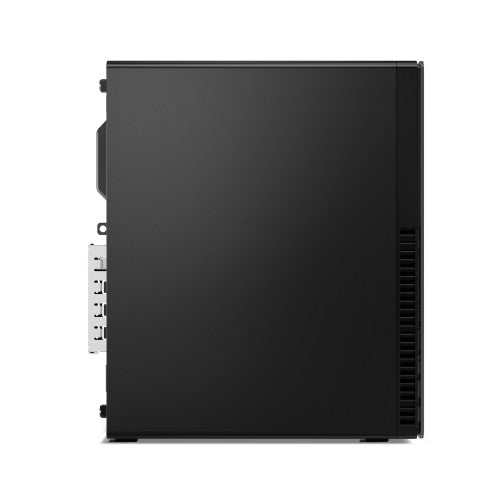

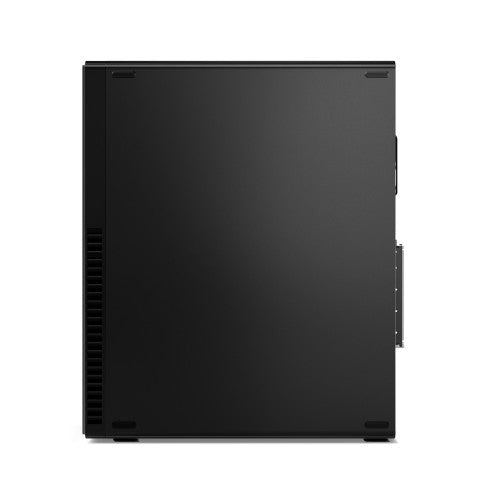

Lenovo ThinkCentre M75s Gen 5, 3.5 GHz, AMD Ryzen™ 5, 8500G, 16 GB, 512 GB, Windows 11 Pro

Description

Lenovo ThinkCentre M75s Gen 5. Processor frequency: 3.5 GHz, Processor family: AMD Ryzen™ 5, Processor model: 8500G. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro. Power supply: 180 W. Chassis type: SFF. Product type: PC. Product colour: Black

Specifications

Processor
Processor generation	AMD Ryzen 8000 Series
Processor cache type	L2 & L3
Processor cache	16 MB
Processor frequency	3.5 GHz
Processor model	8500G
Processor manufacturer	AMD
Processor boost frequency	5 GHz
Processor socket	Socket AM5
Processor threads	12
Processor cores	6
L3 cache	16 MB
L2 cache	6 MB
Processor family	AMD Ryzen™ 5
Processor base power	65 W
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
NPU performance up to	16 TOPs
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Self-Encrypting Drive (SED)	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon 740M
On-board GPU manufacturer	AMD
Performance
Product type	PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	AMD PRO 665
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
WLAN controller model	AMD RZ616
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	AMD
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	4
Serial ports quantity	1
Microphone in	Yes
Line-out	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Power
Power supply	180 W
Technical details
Cable lock slot type	Kensington
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Cable lock slot	Yes
Motherboard chipset	AMD PRO 665
Design
Volume	8.2 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	SFF
Cable lock slot	Yes
Software
Operating system language	French
Operating system installed	Windows 11 Pro
Display
Display included	No
Audio
Audio chip	Realtek ALC623-CG
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	8.2 L
Width	92.5 mm
Depth	297.7 mm
Height	339.5 mm
Weight	4.6 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Display included	No
Keyboard connectivity	Wired
Certificates
Certification	ENERGY STAR,TCO,EPEAT Silver,RoHS,ErP,GREENGUARD
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
Ethernet interface type	Gigabit Ethernet
