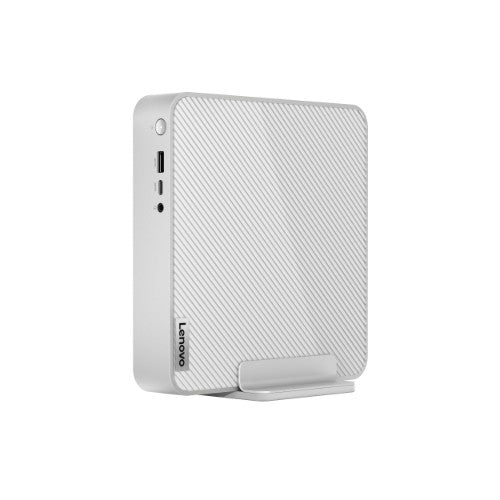

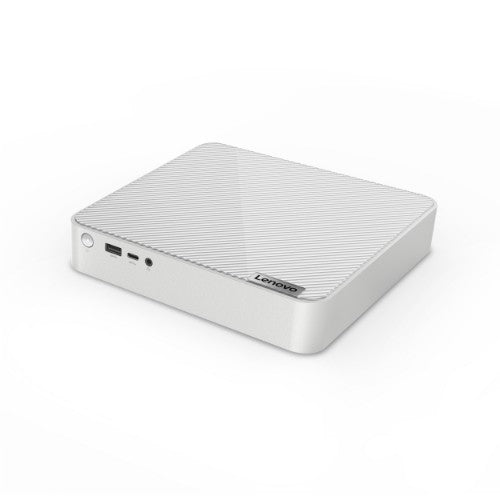

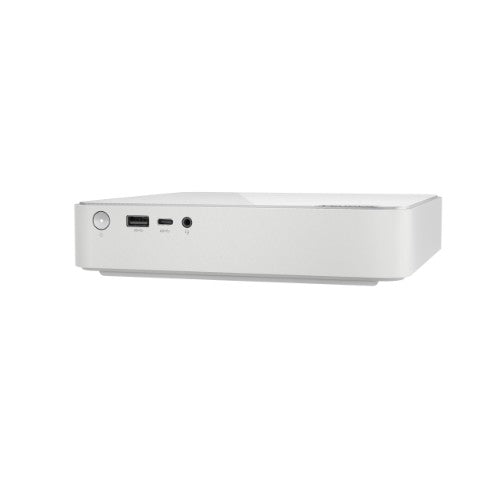

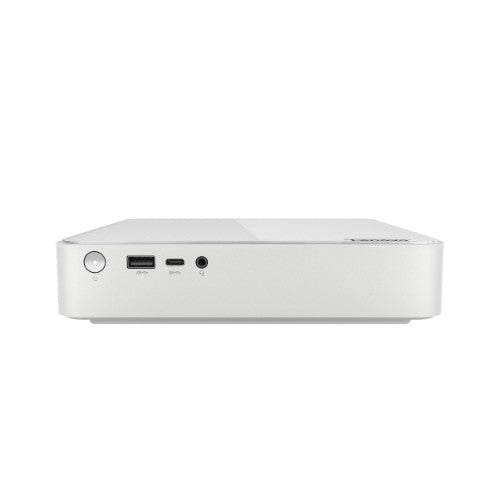

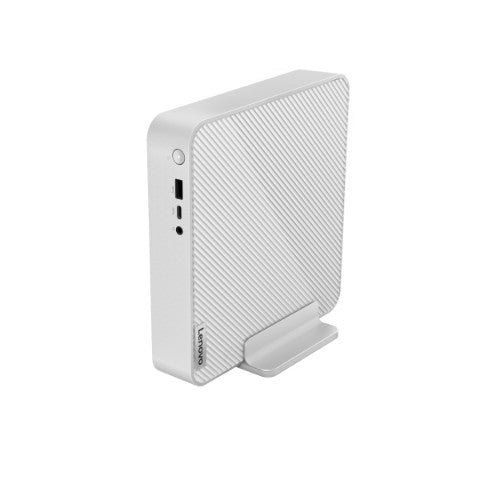

Lenovo IdeaCentre Mini 01IRH8, Intel® Core™ i5, i5-13420H, 16 GB, DDR4-SDRAM, 512 GB, SSD

Description

Lenovo IdeaCentre Mini 01IRH8. Processor family: Intel® Core™ i5, Processor model: i5-13420H. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey

Specifications

Processor
Processor generation	13th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	i5-13420H
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.6 GHz
Processor threads	12
Processor cores	8
Processor family	Intel® Core™ i5
Performance cores	4
Efficient cores	4
Processor base power	45 W
Maximum turbo power	95 W
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.6 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	No
Memory
Memory layout (slots x size)	2 x 8 GB
Internal memory	16 GB
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2

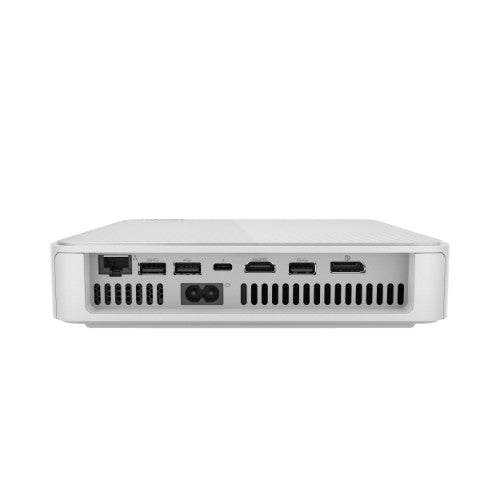

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Technical details
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Grey
Chassis type	Mini PC
Audio system	High Definition Audio
Motherboard chipset	Intel SoC
Design
Volume	1 L
Product colour	Grey
Chassis type	Mini PC
Colour name	Cloud Grey
Performance
Audio chip	Realtek ALC256
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel SoC
Software
Operating system installed	No
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	150 W
Operational conditions
Operating altitude	0 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 12192 m
Certificates
Certification	ENERGY STAR,RoHS
Weight & dimensions
Volume	1 L
Width	191.4 mm
Depth	195 mm
Height	39 mm
Weight	1.8 kg
Packaging content
Display included	No
Display
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
