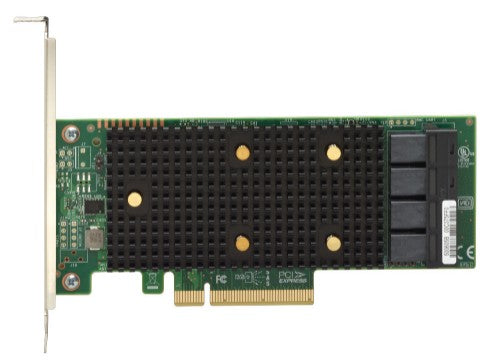

ThinkSystem 430-16i SAS/SATA 12Gb HBA

Key Features

• PCIe 3.0 x8 host interface
• 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
• PCI low profile, half-length form factor
• 8 or 16 internal 12 Gbps SAS/SATA ports
• 430-8i support connectivity to 8 internal drives
• 430-16i support connectivity to 16 internal drives
• Up to 12 Gbps throughput per port
• Supports 12, 6, or 3 Gbps SAS speeds
• Supports 6 or 3 Gbps SATA speeds
• Two internal x4 HD Mini-SAS connectors (SFF-8643)
• Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
• Support internal SAS tape drives
• Optimized for SSD performance
• High performance architecture with very deep queue depth
• Advanced power management support
• Support for SSP, SMP, STP, and SATA protocols
• End-to-End CRC with Advanced Error Reporting
• Spread Spectrum Clocking for EMI reductions
• Supports 512e, 512n and 4K (when available) formatted drives
• Compliant with Disk Data Format (DDF) configuration on disk (CoD)
• S.M.A.R.T. support
• Configuration through
• XClarity Provisioning Manager UEFI interface
• XClarity Controller web interface
• XClarity Administrator Configuration Patterns
• StorCLI command-line interface
• LSI Storage Authority (LSA) GUI interface
• UEFI Human Interface Infrastructure (HII)

Description

The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem internal HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

Specifications

Ports & interfaces
Internal	Yes
Output interface	SAS, SATA
Host interface	PCIe
Internal mini-SAS HD ports	4
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
Technical details
Data transfer rate (max)	12000 Gbit/s
Compatibility	ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950,
Compliance certificates	RoHS
Performance
Data transfer rate (max)	12000 Gbit/s
Product colour	Black, Green
Harmonized System (HS) code	84733020
Certificates
Certification	FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) WEEE EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B)
Colour
Product colour	Black, Green
Design
Internal	Yes
Product colour	Black, Green
Certification	FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) WEEE EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B)
Features
Data transfer rate (max)	12000 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84733020
Other features
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
Compatibility	ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950,
