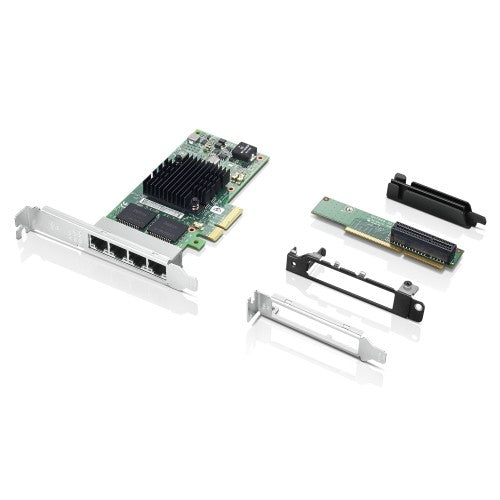

Intel I350-T4 4-Port Ethernet Expansion Card

Key Features

• · Haloen-free quad-port Gigabit Ethernet adapters with copper interface
• · Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
• · High-performing bridgeless design supporting PCI Express Gen 2.1 5GT/s
• · The I350-T4 performance enhancing features include Single Route I/O virtualization (SR-IOV), Virtual Machine Device Queues (VMDq), Intelligent Offloads, PCIe v2.0, 9.5K Jumbo Frame support and time-stamping

Description

The Lenovo Intel I350-T4 4-Port Ethernet Expansion Card is a dependable and cost-effective solution to add four high-performance Ethernet ports to your PC through one PCI Express slot. The expansion card features an Intel I350 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your Think desktop or workstation. The quad-port network card makes it easy to access multiple networks and gives you four redundant, independent Gigabit Ethernet ports.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Data transfer rate	5 GT/s
Network
Data transfer rate	5 GT/s
Networking standards	IEEE 802.3z
Design
Internal	Yes
Power
Power consumption (typical)	5 W
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Weight & dimensions
Width	68.9 mm
Depth	135.4 mm
Weight	84 g
Package width	177 mm
Package depth	144 mm
Package height	53 mm
Package weight	350 g
Packaging data
Package type	Box
Package width	177 mm
Package depth	144 mm
Package height	53 mm
Package weight	350 g
Technical details
Harmonized System (HS) code	85176990
Packaging content
Package type	Box
Logistics data
Harmonized System (HS) code	85176990
Other features
Data transfer rate	5 GT/s
Harmonized System (HS) code	85176990
