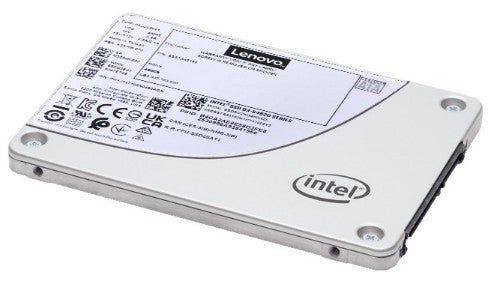

ThinkSystem 2.5" S4620 480GB Mixed Use SATA 6Gb HS SSD

Description

By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS. Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.

Specifications

Hard drive
SSD capacity	480 GB
Memory type	3D TLC NAND
Data transmission
Read speed	550 MB/s
Write speed	500 MB/s
Random write (4KB)	50000 IOPS
Random read (4KB)	82000 IOPS
Write latency	36 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP
Performance
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	480 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
Write speed	500 MB/s
Memory type	3D TLC NAND
Random write (4KB)	50000 IOPS
Random read (4KB)	82000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	36 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Certification	FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	480 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
Write speed	500 MB/s
Memory type	3D TLC NAND
Random write (4KB)	50000 IOPS
Random read (4KB)	82000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	36 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Certification	FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (write)	3 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
Hot-swap	Yes
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	3050 m
Hardware encryption	Yes
SSD form factor	2.5"
Weight & dimensions
Package width	174 mm
Package depth	133 mm
Package height	63 mm
Package weight	434 g
Width	70 mm
Weight	70 g
Height	7 mm
Depth	100 mm
Packaging data
Package width	174 mm
Package depth	133 mm
Package height	63 mm
Package weight	434 g
