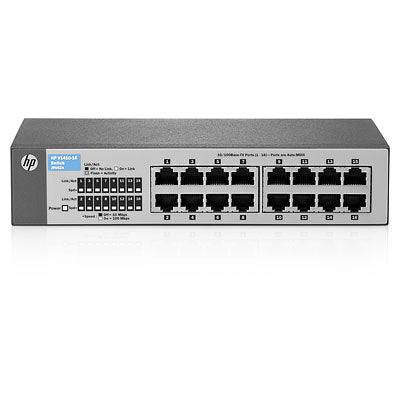

HP V1410-16 10/100 Fast Ethernet Switch

Description

HP V1410 Series switches are unmanaged Gigabit and Fast Ethernet switches designed for small and midsize businesses looking for entry-level, low-cost networking solutions with comprehensive lifetime warranty. The HP V1410 Switch Series consists of 7 models with flexible mounting options that allow customers to choose the best switch to meet their network switching needs. All models have QoS support and IEEE 802.3x flow control features to ensure maximun data efficiency. Simplifed plug and play operation is enabled by features like Auto-MDIX and Auto speed negotiation. HP has innovated and combined the latest advances in silicon technology to provide some of the most power efficient switches: 16- and 24-port Fast Ethernet models are the industry's first IEEE 802.3az compliant unmanaged Fast Ethernet switches. The available green features along with HP's Lifetime Warranty make the HP V1410 Switch Series ideal products for customers seeking low cost and reliable networking solutions.

Quality of Service (QoS)

• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports


Performance

• Energy Efficient Ethernet Support (J9662A and J9663A only): Support news IEEE802.3az Std.; allowing lower power consumption when operated with EEE compliant client devices in 100Mbps mode only.


Ease of use

• Unmanaged: provides plug-and-play simplicity


Flexibility

• Designed with no fan: enables quiet operation for deployment in open spaces


Warranty and support

• Lifetime warranty: for as long as you own the product with advance replacement and next-business-day delivery (available in most countries)*

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Throughput	2.3 mpps
Packet buffer memory	2 MB
MAC address table	8000 entries
Supported data transfer rates	10Mbit/s
Switching capacity	3.2 Gbit/s
Jumbo frames support	Yes
Maximum data transfer rate	0.1 Gbit/s
Design
Safety	UL, CSA, IEC, EN
Electromagnetic compatibility	FCC
Performance
Memory type	EEPROM
Internal memory	0.016 MB
Packet buffer memory	2 MB
Power
Power consumption (typical)	3.6 W
Input voltage	100 - 240 V
Input current	0.3 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	10.6µs
Dimensions (WxDxH)	107 x 208.5 x 44 mm
Connectivity technology	Wired
Wi-Fi	No
Networking features	Fast Ethernet
Mounting	EIA
Input frequency	50/60 Hz
Weight (imperial)	0.649 kg (1.43 lbs)
Dimensions (W x D x H) (imperial)	208.5 x 106.9 x 43.9 mm (8.21 x 4.21 x 1.73")
Input voltage	100 - 240 V
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	32 - 104 °F
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	13 BTU/h
Weight & dimensions
Weight	650 g
Weight (imperial)	0.649 kg (1.43 lbs)
Dimensions (W x D x H) (imperial)	208.5 x 106.9 x 43.9 mm (8.21 x 4.21 x 1.73")
Certificates
Safety	UL, CSA, IEC, EN
Electromagnetic compatibility	FCC
Memory
Packet buffer memory	2 MB
Memory type	EEPROM
Internal memory	0.016 MB
