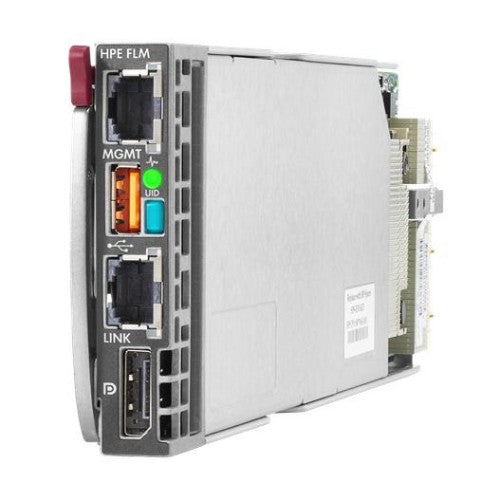

Synergy Frame Link Module

Description

The Frame Link Module is the control and information link for a highly intelligent self-aware system of hardware options. It provides a direct link for resource information to the Synergy Composer (OneView). The link module provides an option for an air-gapped 10Gbe management network ring that allows for multi-frame connectivity. Single or multiple Frames directly linked through this management network can be automatically discovered by OneView along with their resources (compute, storage, networking, and other options) the instant they are plugged in and/or powered on.

Specifications

Performance
Maximum transfer distance	3 m
Data transfer rate	10000 Mbit/s
Cable types supported	Cat6, Cat7
Technical details
Maximum transfer distance	3 m
Data transfer rate	10000 Mbit/s
Cable types supported	Cat6, Cat7
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Weight & dimensions
Width	429 mm
Depth	83 mm
Height	213 mm
Weight	1.06 kg
