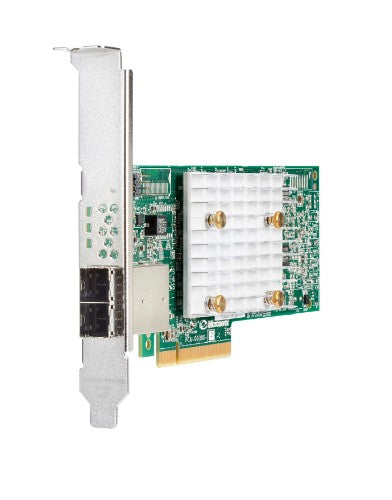

Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

Reasons To Buy

Cost-Effective SAS Storage Connectivity

The HPE Smart Array E208e-p SR Gen10 Controller is a cost effective enterprise-class controller that provides the basic building blocks for simple RAID storage solutions while delivering 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s external storage devices.
Offers a low-cost solution to enable software-defined storage.
Connects to external just a bunch of disks (JBODs) and advanced external storage arrays.

Built-in reliability and security

The HPE Smart Array E208e-p SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption.
Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.

Improved Efficiency and Storage Management

The HPE Smart Array E208e-p SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.
Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.

Description

Are you looking for a cost effective, enterprise-class controller to connect to externally attached drives? The HPE Smart Array E208e-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides a cost-effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, and 10 and software-defined storage (SDS). This controller has eight external SAS lanes, allowing connection to SAS or SATA drives in an external disk enclosure, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. This controller occupies a PCIe expansion slot.

Specifications

Ports & interfaces
Host interface	PCI Express 3.0 x8
Internal mini-SAS HD ports	8
Performance
RAID levels	0, 1, 5, 10
Data transfer rate	12 Gbit/s
Compatible products	HPE ProLiant DL360 Gen10 HPE ProLiant DL380 Gen10 HPE ProLiant DL560 Gen10 HPE ProLiant DL580 Gen10 HPE ProLiant ML110 Gen10 HPE ProLiant ML350 Gen10 HPE ProLiant XL170r Gen10 HPE ProLiant XL190r Gen10 HPE ProLiant XL230K Gen10 ; HPE D3610 Disk Enclosure HPE D3710 Disk Enclosure HPE D6020 Disk Enclosure HPE MSA 1040 SAN Storage HPE MSA 1050 SAN Storage HPE MSA 2040 SAN Storage HPE MSA 2050 SAN Storage
Data transmission
Data transfer rate	12 Gbit/s
Technical details
RAID levels	0, 1, 5, 10
Ports quantity	2
Chassis type	Standard PCIe plug-in controller
External ports	External: 8 SAS lanes across 2 x4 Mini-SAS HD ports
Other features
Ports quantity	2
Chassis type	Standard PCIe plug-in controller
External ports	External: 8 SAS lanes across 2 x4 Mini-SAS HD ports
Additional features	HPE Smart Array SR Secure Encryption (optional license)
