Description

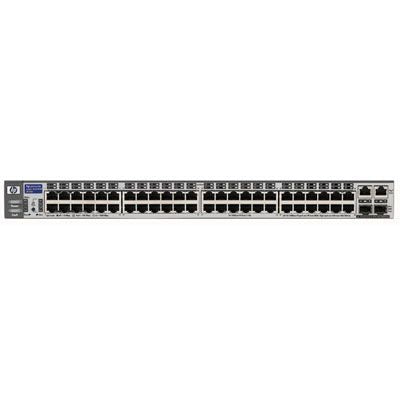

The ProCurve Switch 2600 series is a collection of low-cost, stackable, multi-layer, managed switches with 48, 24, or 8 auto-sensing 10/100 ports and dual-personality ports for 10/100/1000 or mini-GBIC connectivity. The ProCurve Switch 2650-PWR, 2626-PWR, and 2600-8-PWR are IEEE 802.3af-compliant for Power over Ethernet and provide up to 15.4 W per port. A redundant external power supply is also available as an accessory.

Features

Specifications

Ports & interfaces
I/O ports	48 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); 1 RS-232C DB-9 console port; 2 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Networking
Networking standards	EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC 61000-4-5; 1 kV/2 kV AC; Conducted: IEC 61000-4-6; 3V; Power frequency magnetic field: IEC 61000-4-8; 1A/m, 50 or 60 Hz; Voltage dips and interruptions: IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; Harmonics: EN61000-3-2, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3
Data transmission
MAC address table	8.000 entries
Switching capacity	13.6 Gbps
Protocols
Supported network protocols	RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 2236 IGMP v1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 1492 TACACS+; SSHv1/SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; 802.3af Power over Ethernet; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 Syslog; RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB
Sound emission
Acoustic pressure emissions	Power: 50; DIN 45635T.19 per ISO 7779 dB
Design
Safety	CSA 22.2 No. 950; cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition; UL 60950
Rack mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Power
Power consumption (typical)	100W
Power availability	1.5 A
Technical details
Rack mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Technical features	Dual-personality functionality
Certificates
Safety	CSA 22.2 No. 950; cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition; UL 60950
Electromagnetic emissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	4.600m
Heat dissipation	341 BTU/h
Weight & dimensions
Weight	4.44 kg
Other features
Management platform	ProCurve Manager (included); ProCurve Manager Plus; command line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Latency	<13.3 µs (LIFO)
Dimensions (WxDxH)	439.9 x 325.1 x 44.5 mm
Power requirements	100–120 VAC/200–240 VAC; 50/60 Hz
Memory and processor	Processor type and speed: Motorola Power PC MPC8245, 266 MHz; Flash capacity: 8 MB; SDRAM: 32 MB
Technical features	Dual-personality functionality
Power availability	1.5 A
I/O ports	48 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); 1 RS-232C DB-9 console port; 2 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Electromagnetic emissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Acoustic pressure emissions	Power: 50; DIN 45635T.19 per ISO 7779 dB
