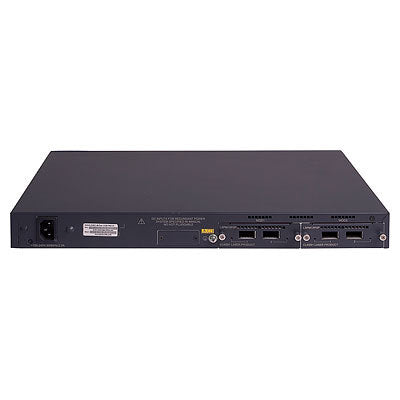

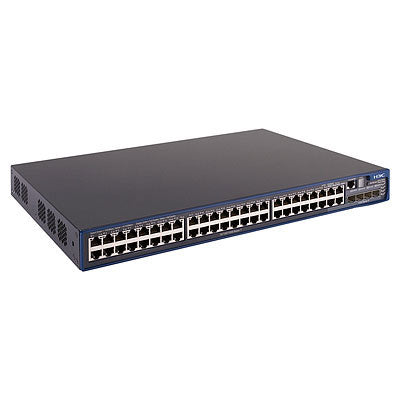

5500-48G - Gigabit Ethernet, RJ-45, 256MB SDRAM, 32MB flash, 3.2 µs, 192 Gbps, 4500g, Black

Description

These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HP 5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual-stack support, the series provides a migration path from IPV4 to IPV6. The series has hardware support for IPV6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional GbE and 10 GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability.

Quality of Service (QoS)

• Storm restraint: allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network


Management

• Friendly port names: allow assignment of descriptive names to ports


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports


Performance

• Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput


Resiliency and high availability

• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance


Layer 2 switching

• 32K MAC addresses: provide access to many Layer 2 devices


Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	49
Combo SFP ports quantity	4
SFP/SFP+ slots quantity	4
Fiber optic connector	SFP
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	192 Gbit/s
Maximum data transfer rate	1 Gbit/s
Security
IGMP snooping	Yes
Protocols
Management protocols	LLDP, STP, SNMPv1/v2c/v3, SMIv2
Design
Safety	UL, EN, IEC, CAN/CSA
Form factor	19U
Product colour	Black
Electromagnetic compatibility	FCC, VCCI, EN, ICES, ANSI, ETSI, AS/NZS
Rack mounting	Yes
Certification	RoHS
Performance
Memory type	SDRAM
Internal memory	256 MB
Flash memory	32 MB
Packet buffer memory	4 MB
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	115 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	3.2 µs
Connectivity technology	Wired
Networking features	Gigabit ethernet
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	300 mm
Depth	440 mm
Height	43 mm
Weight	4.5 kg
Optical fiber
Fiber optic connector	SFP
Technical details
Form factor	19U
Product colour	Black
Rack mounting	Yes
Certificates
Safety	UL, EN, IEC, CAN/CSA
Electromagnetic compatibility	FCC, VCCI, EN, ICES, ANSI, ETSI, AS/NZS
Certification	RoHS
Memory
Packet buffer memory	4 MB
Memory type	SDRAM
Internal memory	256 MB
Flash memory	32 MB
