2610-48-PoE, 48 x Fast Ethernet, Auto-MDIX, Duplex, 1 x Serial RJ-45, 2 x Gigabit Ethernet, 2 x SFP, MIPS 300 MHz, 16MB Flash, 128MB SDRAM, 2MB Buffer, 590 W, Black

Description

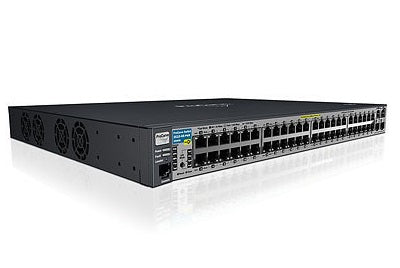

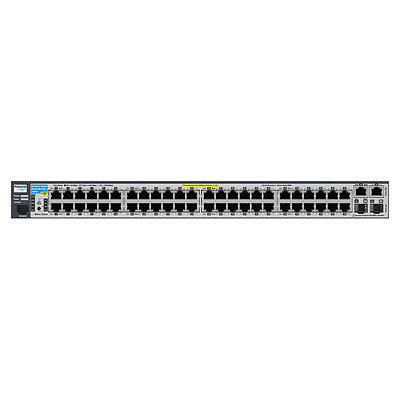

The HP 2610-48-PoE Switch is a managed 52-port switch with 48 auto-sensing 10/100 ports capable of PoE and 2 10/100/1000BASET and 2 miniGBIC ports.

The HP 2610 Switch Series consists of five switches. The HP 2610-24 and 2610-48 Switches provide 24 and 48 ports of 10/100 connectivity. The HP 2610-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces. The HP 2610-24-PPoE, 2610-24-PoE, and 2610-48-PoE Switches are IEEE 802.3af compliant for Power over Ethernet (PoE) and provide up to 15.4 W for 12, 24, and 48 ports. The 2610-24-PPoE switch has 24 10/100 ports and provides 12 ports of PoE. All series switches include two 10/100/1000BASE-T ports and two mini-GBIC slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With static routing, robust security and management features, free lifetime warranty, and free software updates, the HP 2610 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.

- Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ. Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers. Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to four queues.
- IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras. Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see list of supported devices in the product FAQ at www.hp.com/networking/support. Gigabit uplink connectivity: two 10/100/1000BASE-T ports and two mini-GBIC ports for connectivity such as Gigabit Ethernet (SX, LX, LH, and 1000BASE-T) and 100BASE-FX. Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 ports. Jumbo packet support: supports up to 9216-byte frame size to improve performance of large data transfers.
- IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk. IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w. Optional redundant power supply: provides uninterrupted power (provided by HP 600 RPS/EPS).
- RMON, XRMON, and sFlow: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events. Uni-Directional Link Detection (UDLD): monitors a link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices. Command authorization: leverages RADIUS to link a custom list of CLI commands to individual network administrator's login; also provides an audit trail. Multiple configuration files: allow multiple configuration files to be stored to a flash image. Dual flash images: provides independent primary and secondary operating system files for backup while upgrading.
- VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously. GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs. IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs.
- Basic IP routing: enables automatic routing to the connected VLANs and up to 16 static routes, including one default route, in IP networks.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L3
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Gigabit Ethernet (copper) ports quantity	2
SFP/SFP+ slots quantity	2
Console port	RJ-45
Power connector	DC-in jack
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Throughput	13 Mpps
Packet buffer memory	2 MB
MAC address table	8000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	17.6 Gbit/s
Store-and-forward	Yes
Maximum data transfer rate	0.1 Gbit/s
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
MAC address filtering	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1/2/3
Supported network protocols	, BOOTP, Telnet, ARP, TCP, SNTP, ICMP, TFTP, UDP
Design
Safety	CSA, UL, IEC, EN
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Certification	FCC, VCCI, EN, CISPR, IEC
Performance
Processor frequency	300 MHz
Noise level	63.6 dB
Memory type	SDRAM
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Processor model	MIPS
Packet buffer memory	2 MB
Stackable	Yes
Power
Power consumption (typical)	590 W
Redundant power supply (RPS) support	No
Number of power supply units	1
Input voltage	100 - 240 V
Input current	3.5 A
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Latency	4.4 - 6.2 µs
Data transfer rate	100 Mbit/s
Dimensions (WxDxH)	442 x 342.9 x 43.9 mm
Connectivity technology	Wired
Wi-Fi	No
Power LED	Yes
Networking features	Fast Ethernet
Input frequency	50 - 60 Hz
Ethernet LAN	Yes
Connectivity LEDs	Yes
Cabling technology	10/100/1000Base-T(X)
Acoustic pressure emissions	56.6 dB
Input voltage	100 - 240 V
Ethernet LAN data rates	10,100 Mbit/s
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	2281 BTU/h
Weight & dimensions
Weight	7.58 kg
Sound emission
Acoustic pressure emissions	56.6 dB
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	300 MHz
Noise level	63.6 dB
Rack mounting	Yes
Built-in processor	Yes
Certificates
Safety	CSA, UL, IEC, EN
Certification	FCC, VCCI, EN, CISPR, IEC
Memory
Packet buffer memory	2 MB
Memory type	SDRAM
Internal memory	128 MB
Flash memory	16 MB
Indication
Power LED	Yes
LED indicators	Yes
