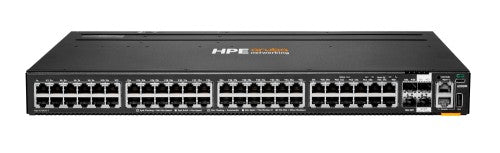

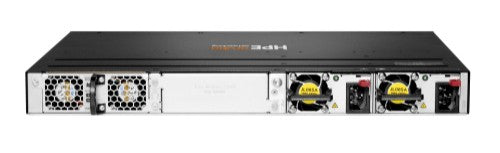

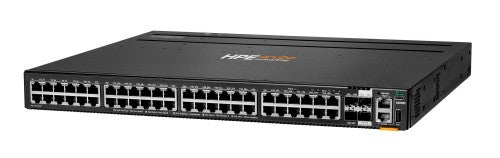

Networking CX6200M 48G 4SFP+ Switch

Key Features

• Enterprise-class connectivity with support for ACLs, robust QoS and common protocols such as static and Access OSPF routing Scalability with 8-member switch VSF stacking
• Scalability with 8-member switch VSF stacking for up to 384 downlink ports
• Versatile 1G/10G uplinks with LRM and MACsec 256 support on modular switches
• Convenient built-in 1G/10G uplinks on fixed power switches and additional cost-efficient 1G uplink switch models
• Industry standard Power over Ethernet with up to 30W PoE (Class 4) per port on fixed power switches and up to 60W PoE (Class 6) per port on modular power switches
• Intelligent monitoring, visibility, and troubleshooting with HPE Aruba Networking Network Analytics Engine
• Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
• Simple, one touch deployment with the HPE Aruba Networking CX Mobile App
• Automated configuration and verification with HPE Aruba Networking NetEdit
• Secure and simple access for users and IoT with HPE Aruba Networking Dynamic Segmentation

Reasons To Buy

Performance and Power at the Edge

The HPE Aruba Networking CX 6200 Switch Series provides Layer 3 access switching with high performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
A fully distributed architecture with Gen7 ASICs deliver very low latency, increased packet buffering, and adaptive power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.
HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers visibility and built-in analytics for real-time monitoring and accelerated troubleshooting. The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
The HPE Aruba Networking CX Mobile App simplifies connecting and stacking this switch series with easy one touch deployment. Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.

Simplified Configuration and Management

The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

Smarter Segmentation

The HPE Aruba Networking CX 6200 Switch Series supports Dynamic Segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.
Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
Reduces time-consuming and error-prone task of adds, moves and changes.

Description

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.

What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification

Specifications

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
USB Type-A ports quantity	1
Copper ethernet cabling technology	1000BASE-T
I/O ports	48 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
Network
Copper ethernet cabling technology	1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	Yes
Data transmission
Throughput	130.9 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Switching capacity	176 Gbit/s
Design
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	8
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Processor manufacturer	ARM
Built-in processor	Yes
Processor model	ARM Cortex-A72
Stackable	Yes
Power
AC input voltage	200 - 240 V
Power consumption (typical)	75 W
Input voltage	230 V
Power consumption note	75W at 230 VAC
Power source	AC
Power supply note	2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supports JL085A PSU
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Performance management	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Memory and processor	CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Fan	Fixed fans
Weight (imperial)	6.01 kg (13.2 lbs)
I/O ports	48 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
Dimensions (W x D x H) (imperial)	43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1")
Input voltage	230 V
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	43.9 mm
Depth	442.5 mm
Height	383.8 mm
Weight	6.01 kg
Weight (imperial)	6.01 kg (13.2 lbs)
Dimensions (W x D x H) (imperial)	43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1")
Technical details
Physical stacking (units)	8
Stackable	Yes
Processor frequency	1800 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Memory type	DDR4-SDRAM
Internal memory	8000 MB
