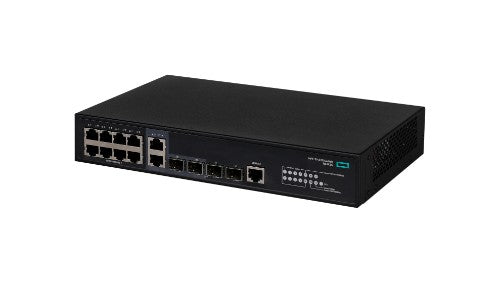

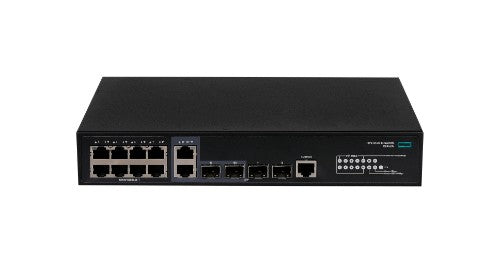

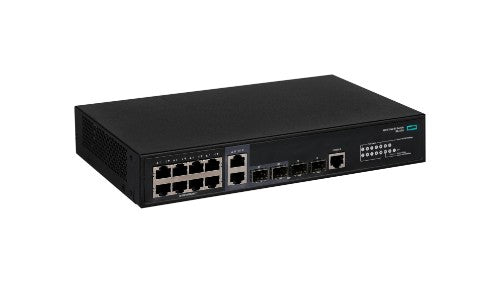

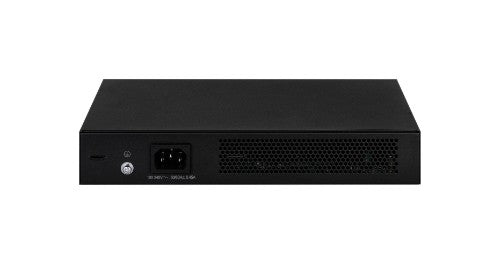

Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

Reasons To Buy

Scalability and High Availability

The HPE Networking Comware Switch Series 5140 EI delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
HPE IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.
Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications.
Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability.

Comprehensive Security Control

The HPE Networking Comware Switch Series 5140 EI supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL.
Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
Centralized security policy management and network protection with HPE Aruba Networking IMC End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system.
Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.

Simplified Management

The HPE Networking Comware Switch Series 5140 EI can be seamlessly managed with HPE Aruba Networking IMC to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Enhanced Quality of Service

The HPE Networking Comware Switch Series 5140 EI supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
It provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Description

The HPE Networking Comware Switch Series 5140 EI delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, HPE Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP; convenient fixed 10 GbE uplink ports, PoE+, ACLs, and IPv6; and delivers energy savings with Energy Efficient Ethernet. The HPE Networking Comware Switch Series 5140 EI also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Aruba Networking IMC for a single view of your entire network.

What is new supporting point:
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
I/O ports	8 RJ-45 autosensing 10/100/1000 ports; Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); 2 combo ports with 2 SFP or 2 1GbE ports and 2 SFP ports; 1 RJ-45 serial console port
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
IPv6 FIB entries	256
IPv4 FIB entries	512
Data transmission
Throughput	18 Mpps
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	3 µs
MAC address table	16384 entries
Switching capacity	24 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	HWTACACS, RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
IPv6 FIB entries	256
IPv4 FIB entries	512
Design
Form factor	1U
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	9
Internal memory	512 MB
Flash memory	256 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	15 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption note	15W (Maximum), 8W (Idle) Note: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Power source	AC
Power supply note	At least 1 power supply is required (not included, must be ordered separately)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Other features
Latency	1000 Mb latency: < 5 μs 10 Gbps latency: < 3 μs
Performance management	HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager
Memory and processor	512 MB SDRAM, 256 MB flash
Weight (imperial)	1.5 kg (3.31 lbs)
I/O ports	8 RJ-45 autosensing 10/100/1000 ports; Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); 2 combo ports with 2 SFP or 2 1GbE ports and 2 SFP ports; 1 RJ-45 serial console port
Dimensions (W x D x H) (imperial)	43.7 x 439.9 x 160 mm (1.72 x 17.3 x 6.3")
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	51.2 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	43.6 mm
Depth	104.7 mm
Height	160 mm
Weight	1.5 kg
Weight (imperial)	1.5 kg (3.31 lbs)
Dimensions (W x D x H) (imperial)	43.7 x 439.9 x 160 mm (1.72 x 17.3 x 6.3")
IPv4 & IPv6 features
IPv6 FIB entries	256
IPv4 FIB entries	512
Technical details
Physical stacking (units)	9
Form factor	1U
Stackable	Yes
Rack mounting	Yes
Memory
Internal memory	512 MB
Flash memory	256 MB
Logistics data
Harmonized System (HS) code	85176990
