Dual-Band, 2.5 dBi 2.4 Ghz, 5.9 dBi, 5 Ghz, MIMO, 0.7 kg

Description

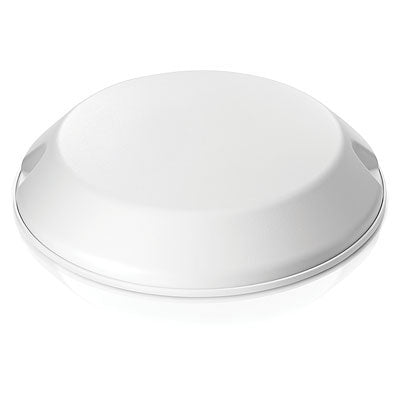

The HP J9659A is an indoor ceiling grid-mounted omnidirectional array especially designed for use with dual-radio 802.11n access points. Six independent vertically polarized radiators provide omnidirectional coverage for meeting rooms, offices, departmental areas, or other enclosed spaces.

Specifications

Performance
Antenna gain level (max)	5.9 dBi
Frequency band	2.4/5 GHz
Antenna gain (5 GHz)	5.9 dBi
Antenna gain (2.4 GHz)	2.5 dBi
Features
Connector gender	Male
Antenna type	Omni-directional antenna
Purpose	Indoor
Polarization	Vertical polarization
Product colour	Black, Silver, White
Cable length	0.8 m
Antenna connector type	RP-SMA
Antenna gain level (max)	5.9 dBi
Frequency band	2.4/5 GHz
Antenna gain (5 GHz)	5.9 dBi
Antenna gain (2.4 GHz)	2.5 dBi
Weight & dimensions
Weight	700 g
Technical details
Antenna gain level (max)	5.9 dBi
Frequency band	2.4/5 GHz
Antenna type	Omni-directional antenna
Purpose	Indoor
Polarization	Vertical polarization
Frequency range	2.4-2.5 GHz, 5.15-5.85 GHz
Cable length	0.8 m
Antenna gain (5 GHz)	5.9 dBi
Antenna gain (2.4 GHz)	2.5 dBi
Antenna connector type	RP-SMA
Colour
Product colour	Black, Silver, White
Other features
Frequency range	2.4-2.5 GHz, 5.15-5.85 GHz
