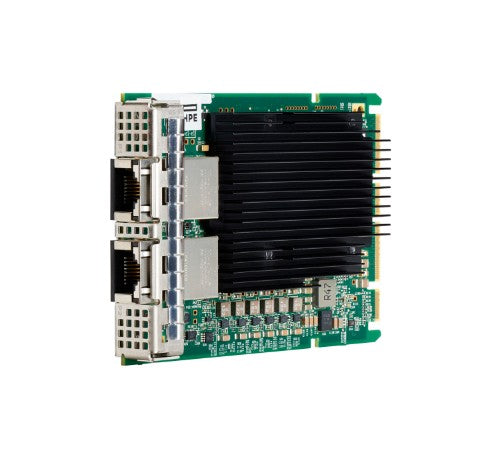

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter

Description

Is your data center constantly challenged to deliver increased security and reliability in a cost-effective and scalable solution for your network bandwidth?

The HPE Gen10 Plus Ethernet Adapters are 1Gb, 10Gb, 10/25Gb and 100Gb and 200 Gb Ethernet solutions that are scalable and compatible with HPE Gen10 Plus servers for hybrid cloud services, mobile data and streaming video applications.
Your server is the foundation of your data center, but it doesn’t work alone. When one link in your component chain slows down, so does the rest of your operation. Keep your network and data flowing with a seamless ecosystem of HPE servers, networking adapters, transceivers, cables, and switches.

Features

Better Performance
- HPE Gen10 Plus Ethernet Adapters are engineered for an assortment of bandwidths and latency sensitive applications.
- Reduces CPU utilization with support for a variety of I/O offloads including RDMA and Tunneling.

Reliability and Security
- HPE Gen10 Plus Ethernet Adapters authenticate updates for NICs that signed firmware is correct and trusted to reduce rogue firmware installation.
- Protect applications, data, and server infrastructure by authenticating digitally-signed firmware via a root of trust architecture.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	2
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
Cabling technology	10GBase-T
Maximum data transfer rate	10000 Mbit/s
Design
Internal	Yes
Form factor	OCP 3.0
Component for	Server
Technical details
Harmonized System (HS) code	85176990
Other features
Form factor	OCP 3.0
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
