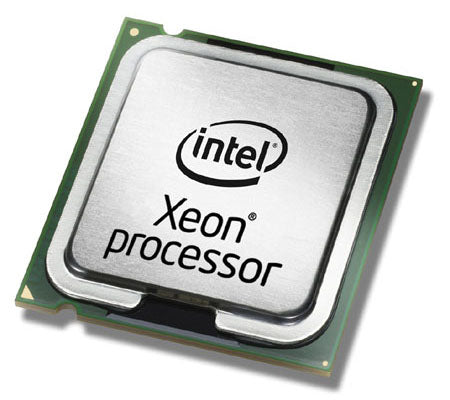

HP BL660c Gen8 Intel Xeon E5-4650 (2.7GHz/8-core/20MB/130W) 2-processor Kit

Description

Information technology professionals rely on HP quality to ensure maximum productivity. As the power of applications, processors, memory adapters and storage devices increases, high-end computer users are seeking ways to optimize their system performance. HP provides leading solutions, adding new levels of performance, availability, flexibility, and management.

Specifications

Processor
Processor base frequency	2.7 GHz
Memory bandwidth supported by processor (max)	51.2 GB/s
Thermal Design Power (TDP)	130 W
Processor cache	20 MB
Processor model	E5-4650
Processor threads	16
System bus rate	8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.6 - 1.35 V
Processor boost frequency	3.3 GHz
Number of QPI links	2
Bus type	QPI
Component for	Server/workstation
Processor lithography	32 nm
Processor family	Intel® Xeon® E5 Family
Processor front side bus	1600 MHz
Processor cores	8
Processor socket	LGA 2011 (Socket R)
Processor cache type	L3
Memory
Maximum internal memory supported by processor	1.5 TB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	130 W
VID Voltage Range	0.6 - 1.35 V
Technical details
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
Supported instruction sets	AVX
Scalability	S4S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	4
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Thermal Design Power (TDP)	130 W
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	130 W
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX
Scalability	S4S
Embedded options available	No
CPU configuration (max)	4
Market segment	Server
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Turbo Boost Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Other features
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
CPU configuration (max)	4
Compatibility	HP BL660c Gen8
