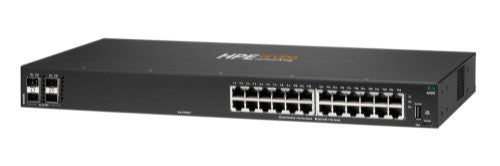

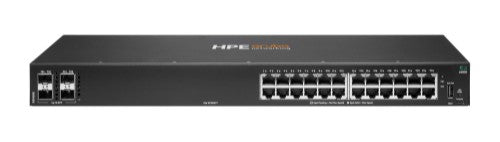

Aruba Networking CX 6000 24p 10M/100M/1G 4p SFP 1G Switch

Reasons To Buy

Entry-level Layer 2 access switches

The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System used across HPE Aruba Networking CX switching platforms.
It has fully-managed enterprise-class switches switches deliver Layer 2 capabilities with support static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow, and IPv6.
The CX 6000 series provides right-size deployment with choice of 8, 12, 24, and 48-port 1U models with convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE.
It simplifies ownership with no switch software licensing or subscriptions required.

AI-ready erformance and power

The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and optimized power consumption ideal for AI, Wi-Fi 7, and IoT requirements.
It supports up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port to enable full deployments of wireless access points and IoT devices.
It has up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.

Simplified configuration and management

The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
The CX 6000 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

Description

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.

What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
USB Type-A ports quantity	1
USB Type-C ports quantity	1
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
IPv6 FIB entries	128
IPv4 FIB entries	256
Data transmission
Throughput	41.6 Mpps
Latency (1 Gbps)	1.5 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Form factor	1U
Product colour	Black
Stackable	No
Rack mounting	Yes
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	12.38 MB
Stackable	No
Power
Power consumption (max)	33 W
Power supply included	Yes
AC input voltage	200 - 240 V
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	44 mm
Depth	442 mm
Height	201 mm
Weight	2.6 kg
IPv4 & IPv6 features
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Technical details
Form factor	1U
Product colour	Black
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16384 MB
