AP-ANT-48, 2.4-2.5/4.9-6.0 GHz, 8.5 dBim 50 Ohms
Description
AP-ANT-48 is a multi-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 8.5 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Antenna gain (5 GHz) | 8.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Features | |
| Housing material | Aluminium, Plastic |
| Connector gender | Male |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Mounting | Wall |
| Cable length | 0.3 m |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 8.5 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Antenna gain (5 GHz) | 8.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Power | |
| Power consumption (max) | 6 W |
| Operational conditions | |
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
| Weight | 700 g |
| Width | 190 mm |
| Depth | 190 mm |
| Height | 44 mm |
| Technical details | |
| Antenna gain level (max) | 8.5 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Mounting | Wall |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Cable length | 0.3 m |
| Antenna gain (5 GHz) | 8.5 dBi |
| Antenna gain (2.4 GHz) | 8.5 dBi |
| Antenna connector type | RP-SMA |
| Harmonized System (HS) code | 85177100 |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |

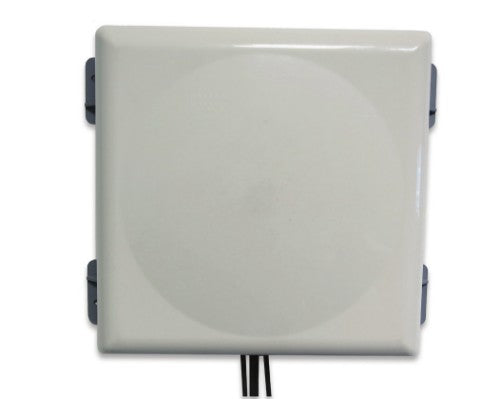

HPE Aruba Networking AP-ANT-48 network antenna Sector antenna RP-SMA 8.5 dBi
Vendor: HPE
SKU: JW019A
Regular price
Dhs. 271.50
Need bulk pricing or a custom order?
