48 x Gigabit Ethernet, 4 x SFP, 192 Gbps, 128 MB SDRAM, 145W
The HP 5120 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your network and includes Lifetime Warranty 2.0 with 3 years 24x7 phone support.
Description
The HP 5120 EI Switch Series delivers flexibility, scalability and low TCO with a robust feature set supporting stacking, static layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.The HP 5120 EI Switch Series can be managed with the HP Intelligent Management Center (IMC) for a single view of your network and includes Lifetime Warranty 2.0 with 3 years 24x7 phone support.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP/SFP+ slots quantity | 4 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| Routing entries | 32 |
| Data transmission | |
| Throughput | 142 Mpps |
| Packet buffer memory | 4 MB |
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 192 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Design | |
| Safety | UL 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1 |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | FCC, RoHS |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Packet buffer memory | 4 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 145 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Latency | 3.2 µs |
| Dimensions (WxDxH) | 440 x 300 x 43.6 mm |
| Operational conditions | |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Heat dissipation | 495 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 43.6 mm |
| Weight | 5 kg |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Certificates | |
| Safety | UL 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1 |
| Certification | FCC, RoHS |
| Memory | |
| Packet buffer memory | 4 MB |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |

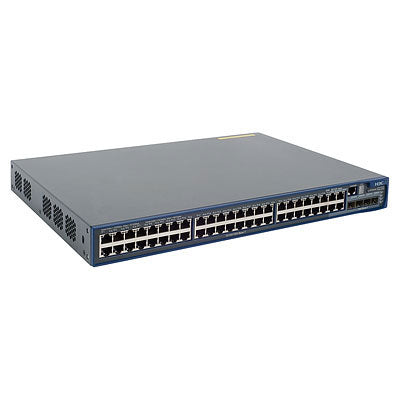

HPE A A5120-48G EI Black
