HP 8/80 Base (48) Full Fabric Ports Enabled SAN Switch
The 8/80 SAN Switch features a non-blocking architecture with as many as 80 ports concurrently active at 8 Gbit/sec full duplex providing an aggregate bandwidth of 1280 Gbit/sec.
Optional Integrated Routing provides selective device sharing while maintaining remote fabric isolation for higher levels of scalability and fault isolation.
The Power Pack+ software provides the SAN administrator with the necessary tools to monitor the health and performance of the network through a single pane of glass. Enhanced capabilities ensures ample bandwidth for mission-critical applications.
Description
HP 8/80 SAN Switch is ideal for medium-to-large-sized organizations that need a scalable and high-availability solution to meet rapidly evolving storage requirements. When deployed as a core SAN fabric switch, the fully enabled 80 port SAN Switch provides a single-switch core footprint that is ideal for SAN fan-out using lower-density B-series switches.The 8/80 SAN Switch features a non-blocking architecture with as many as 80 ports concurrently active at 8 Gbit/sec full duplex providing an aggregate bandwidth of 1280 Gbit/sec.
Optional Integrated Routing provides selective device sharing while maintaining remote fabric isolation for higher levels of scalability and fault isolation.
The Power Pack+ software provides the SAN administrator with the necessary tools to monitor the health and performance of the network through a single pane of glass. Enhanced capabilities ensures ample bandwidth for mission-critical applications.
Specifications
| Ports & interfaces | |
|---|---|
| I/O ports | FL_Port, F_Port, E_Port, EX_Port, M_Port (Mirror Port), and self-discovery based on switch type (U_Port). |
| Networking | |
| Full duplex | Yes |
| Data transmission | |
| Switching capacity | 1280 Gbps |
| Security | |
| Security algorithms | No |
| Protocols | |
| Supported network protocols | Fibre Channel, Routing |
| Design | |
| Form factor | Rack (2U) |
| Technical details | |
| Form factor | Rack (2U) |
| Upgrade type | Standard 48 Ports; 16 Port on Demand upgrades, Upgrade from Base to Power Pack+ |
| Switch models | Base, Power Pack |
| Port speed rating | 8 Gbps |
| Optional software | Power Pack+ Software Bundle, Data Center Fabric Manager Enterprise Software |
| Multimedia | B-series 4 Gb and 8 Gb SFPs |
| Manageability features | B-series Fabric Manager. Integration with Storage Essentials |
| Airflow | Back-to-front airflow |
| System requirements | |
| Required software | Advanced Fabric OS, Advanced Zoning, Web Tools |
| Media types supported | Hot-pluggable, industry-standard Small Form Factor Pluggable (SFP), LC connector; Short-Wave Laser (SWL), Long-Wave Laser (LWL); Extended Long-Wave Laser (ELWL); distance depends on fiber-optic cable and port speed. Supports B-series SFP (4/2/1 Gbit/sec) and/or B-series SFP+ (8/4/2 Gbit/sec) optical transceivers. |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 to 85 non-condensing |
| Operating altitude | 3000m |
| Non-operating altitude | 12000m |
| Weight & dimensions | |
| Weight | 20.5 kg |
| Other features | |
| Management platform | 8 Gbit/sec |
| Dimensions (WxDxH) | 254 x 547.6 x 785.9 mm |
| Service level | Class 2, Class 3, Class F (inter-switch frames) |
| Power requirements | 85- 264 VAC; 47 - 63 Hz |
| Diagnostics | POST and embedded online/offline diagnostics |
| Upgrade type | Standard 48 Ports; 16 Port on Demand upgrades, Upgrade from Base to Power Pack+ |
| Switch models | Base, Power Pack |
| Port speed rating | 8 Gbps |
| Optional software | Power Pack+ Software Bundle, Data Center Fabric Manager Enterprise Software |
| Multimedia | B-series 4 Gb and 8 Gb SFPs |
| Manageability features | B-series Fabric Manager. Integration with Storage Essentials |
| I/O ports | FL_Port, F_Port, E_Port, EX_Port, M_Port (Mirror Port), and self-discovery based on switch type (U_Port). |
| Airflow | Back-to-front airflow |

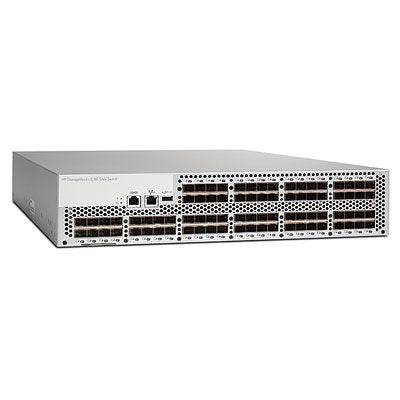

HPE 8/80 Base (48) Full Fabric Ports Enabled SAN Switch
Vendor: HPE
SKU: AM871A
Regular price
Dhs. 1,333.08
