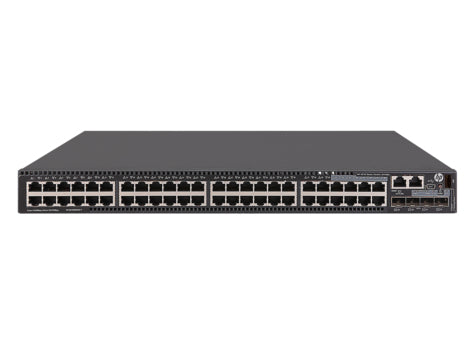

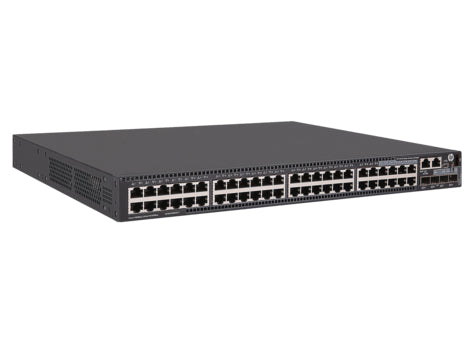

HPE FlexNetwork 5510, 2 GB SDRAM, 512 MB flash, 100–240 VAC, 50/60 Hz, 43.99 x 46 x 4.37 cm

Key Features

• Scalable with 10 Gigabit uplinks and 9-chassis IRF with up to 160 GB/s stacking bandwidth
• 40G QSFP+ ports for uplink or stacking
• 4 convenient built-in SFP+ 10GbE uplinks provide performance for bandwidth hungry applications
• PoE+ for up to 30 Watts of PoE power per port on all ports simultaneously
• MACsec support

Description

The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks.

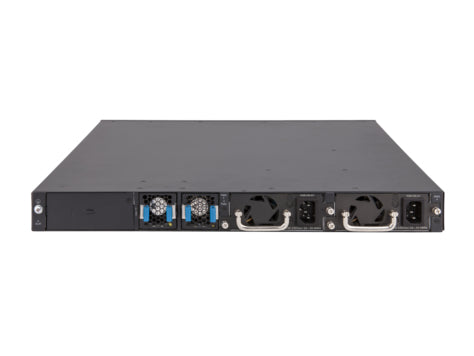

With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver high levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration.

Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.

Specifications

Management features
Multicast support	Yes
Traffic shaping	Yes
Switch type	Managed
Web-based management	Yes
Switch layer	L3
Virtual LAN features
VLAN support	Yes
Data transmission
Multicast MAC address table	32768 entries
Throughput	250 Mpps
Latency (10-100 Mbps)	5 µs
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	3 µs
Packet buffer memory	4 MB
Switching capacity	288 Gbit/s
Jumbo frames support	Yes
Performance
Packet buffer memory	4 MB
Stackable	Yes
Physical stacking (units)	9
Internal memory	2048 MB
Flash memory	512 MB
Harmonized System (HS) code	85176990
Technical details
Physical stacking (units)	9
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Console port	RJ-45
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Multicast features
Multicast MAC address table	32768 entries
Multicast support	Yes
Memory
Packet buffer memory	4 MB
Internal memory	2048 MB
Flash memory	512 MB
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	440 mm
Depth	460 mm
Height	43.7 mm
Logistics data
Harmonized System (HS) code	85176990
