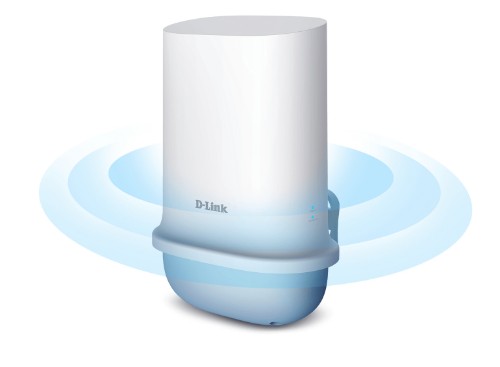

5G/LTE Outdoor CPE DWP-1010

Key Features

• Lightning-fast 5G wireless speeds of up to 4Gbps
• IP67 weather-resistant design
• 6 x 5G/LTE internal antennas, SIM unlocked
• 2.5 Gbps Ethernet LAN port with PoE
• Plug and play, and web UI for advanced configuration

Description

Connect to superior outdoor 5G wireless.
Deploy this easy-to-install, high performance 5G/LTE outdoor CPE device. Equipped with a rugged IP67 weather-resistant housing, and flexible deployment options, it’s ideal for both large-scale and individual deployments.

Lightning-fast 5G
Next-gen 5G with dual-mode which enables selection between 5G and LTE connectivity based on signal reception quality.

Built for the outdoors
IP67 weather-resistant rating for water and dust resistance.

2.5 Gbps Ethernet
x1 2.5 Gbps 802.3at-compliant Gigabit Ethernet LAN port with PoE to connect to PoE injector or CPE

Plug and play
Get started immediately with our free EZ Site-Survey mobile app for optimal positioning

High-speed 5G Internet with dual-mode
Connect with next-generation 5G speeds of up to 4 Gbps and experience lightning-fast downloads, lower latency and reduced congestion.

It features x6 built-in powerful 5G/LTE D-Link antennas, and the DWP-1010 also supports fallback from 5G to LTE so you’ll always be connected.

Withstands the weather
Built with a rugged IP67 weather-resistant housing to help protect the DWP-1010 from extreme weather and provide clear reception, so you can continue to receive the best connectivity possible — come rain or shine.

Simple installation with Power over Ethernet (PoE)
Comes with a 2.5 Gbps Ethernet LAN port with support for PoE, allowing a single Ethernet cable to carry both data and power to a device. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

Easy to install, use and manage

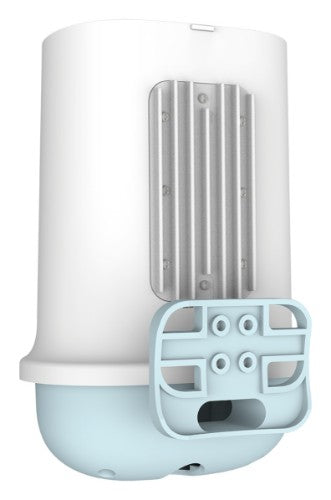

Comes with flexible installation options - it can be pole or wall-mounted to get the best reception. The accompanying free EZ Site-Survey mobile app helps you position the DWP-1010 to get the best 5G signal for the fastest download and upload speeds.

Specifications

Ethernet LAN features
Ethernet WAN	No
Ethernet LAN interface type	Multi-Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	1000,2500 Mbit/s
DSL features
DSL WAN	No
Mobile network
SIM card slot	Yes
Mobile network generation	5G
4G standard	LTE
SIM card type	MicroSIM
5G standard	NR
Performance
Plug and Play	Yes
WAN connection
Ethernet WAN	No
DSL WAN	No
SIM card slot	Yes
Network
Ethernet LAN interface type	Multi-Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000,2500 Mbit/s
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	1
Management features
Web-based management	Yes
Reset button	Yes
Design
Wall mountable	Yes
LED indicators	Status
Product colour	White
International Protection (IP) code	IP67
Certificates
Compliance certificates	CE
Packaging content
Cables included	AC, LAN (RJ-45)
Warranty card	Yes
Sustainability
Sustainability compliance	Yes
Antenna
Antenna design	Internal
Antennas quantity	6
Features
Plug and Play	Yes
Power
Power source type	PoE
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	105.4 mm
Weight	760 g
Height	210.4 mm
Depth	144.8 mm
Packaging data
Cables included	AC, LAN (RJ-45)
Warranty card	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE
Other features
Compatible operating systems	Andorid, iOS Windows, Mac, Linux
