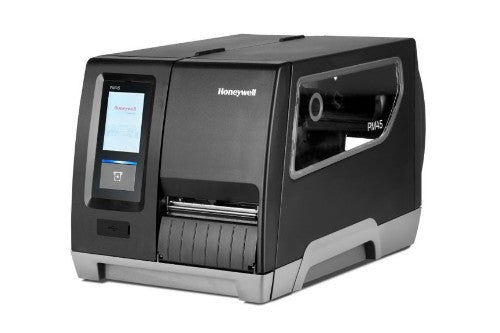

PM45A, FULL TOUCH DISPLAY, ETHERNET, FIXED HANGER,THERMAL TRANSFER, 3

Description

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

Specifications

Print quality
Maximum resolution	600 x 600 DPI
Maximum printing width	4.49" (11.4 cm)
Printing
Print speed	350 mm/sec
Maximum resolution	600 x 600 DPI
Maximum printing width	4.49" (11.4 cm)
Print technology	Thermal transfer
Display
Touchscreen	Yes
Colour display	Yes
Backlight display	Yes
Network
Wi-Fi	Yes
Ethernet LAN	Yes
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Maximum roll diameter	8.39" (21.3 cm)
Core diameter	3" (7.62 cm)
Ports & interfaces
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
RS-232 ports	1
Connectivity technology	Wired & Wireless
Bluetooth version	5.0
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
USB port	Yes
Bluetooth Low Energy (BLE)	Yes
Performance
Built-in barcodes	1D, 2D, EAN128
Security algorithms	LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2
Internal memory	256 MB
Flash memory	512 MB
Design
Touchscreen	Yes
Colour display	Yes
Backlight display	Yes
Product colour	Black
Power
Power consumption (standby)	9.6 W
AC input voltage	100 - 240 V
AC input frequency	60 Hz
Technical details
Product colour	Black
Built-in barcodes	1D, 2D, EAN128
Security
Security algorithms	LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2
Weight & dimensions
Width	11.2" (284 mm)
Depth	11.6" (295 mm)
Height	19" (483 mm)
Weight	29.1 lbs (13.2 kg)
