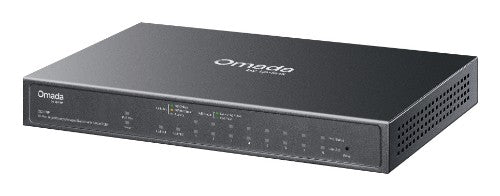

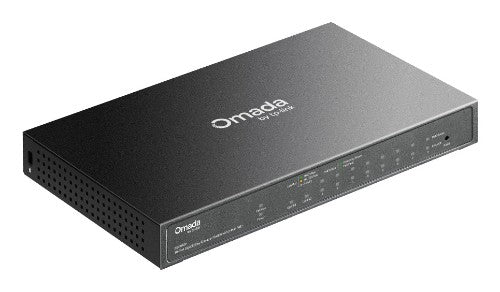

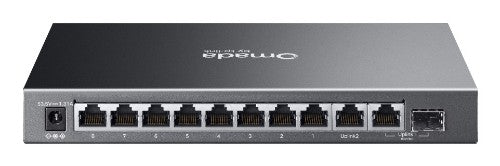

8× PoE+, 1× RJ45, 1× RJ45/SFP Combo, 63W Total PoE, 209 × 126 × 26 mm

Key Features

• 8× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
• 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 63W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation

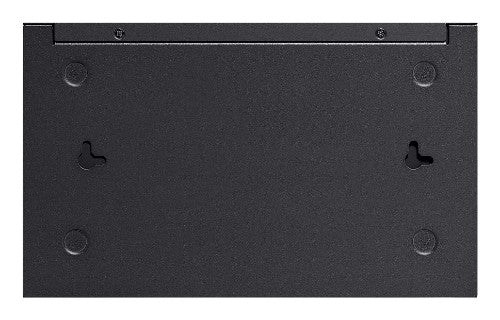

• Durable metal casing and desktop/wall mounting design

Description

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ PORT: 8 Gigabit PoE+ Ports, 1x Gigabit Non-PoE Ports, 1 Combo Gigabit RJ45/SFP Port SPEC: 802.3at/af, 63 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
Jumbo frames	15000
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Number of VLANs	4000
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	DIN rail
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Power
Input current	1.31 A
DC input voltage	53 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Number of VLANs	4000
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	8.23" (209 mm)
Depth	4.96" (126 mm)
Height	1.02" (26 mm)
Packaging content
Quick start guide	Yes
Cables included	Power
Performance
Packet buffer memory	0.5 MB
Auto-negotiation	Yes
Technical details
Form factor	DIN rail
Product colour	Black
Rack mounting	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory	0.5 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	Yes
Packaging data
Quick start guide	Yes
Cables included	Power
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
