IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
Key Features
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Description
Industrial-Grade Protection Built for Harsh EnvironmentsEnhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 8.93 Mpps |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 57 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.72" (120 mm) |
| Height | 2.36" (60 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Packaging data | |
| Quick start guide | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

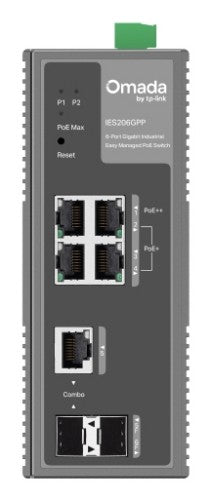

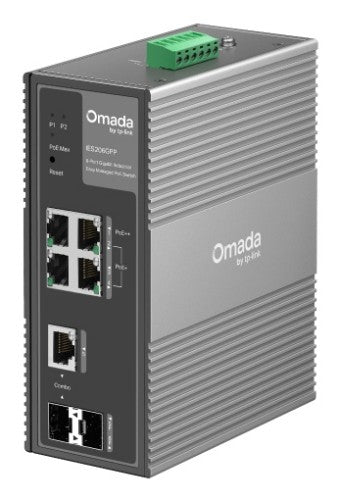

TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Vendor: TP-Link
SKU: IES206GPP
Regular price
Dhs. 160.89
